Product Overview
The CHJPF86/SC is a high-performance, double-sheathed marine communication cable designed for fixed installations that demand both exceptional fire safety and reliable electromagnetic compatibility. It features Cross-Linked Polyethylene (XLPE) insulation and a full Halogen-Free, Low Smoke Flame Retardant (LSHF) construction. Protected by a tinned copper wire braid armor and an additional outer sheath, it offers balanced mechanical protection, effective EMI shielding, and enhanced durability for critical systems on vessels, offshore platforms, and in industrial settings, fully complying with the IEC 60092 standard series.
Key Features & Benefits
-
Effective Shielding & Protection: The tinned copper wire braid armor (Code 8) provides robust mechanical protection while offering superior shielding against electromagnetic interference (EMI), crucial for sensitive communication and instrumentation signals.
-
Comprehensive Fire Safety: Constructed to meet Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) requirements, reducing hazardous emissions and smoke. Certified for high Flame Retardancy (IEC 60332-1 & -3-22).
-
Enhanced Durability: The dual-layer Thermoplastic Polyolefin (SHF1) sheath provides excellent environmental sealing, moisture resistance, and additional mechanical protection over the armor, extending cable life in demanding conditions.
-
Reliable Performance: XLPE insulation ensures stable electrical properties, high thermal endurance (90°C), and excellent resistance to aging, guaranteeing long-term signal integrity.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Outer Sheath Color: Standard Black (other colors available on request).

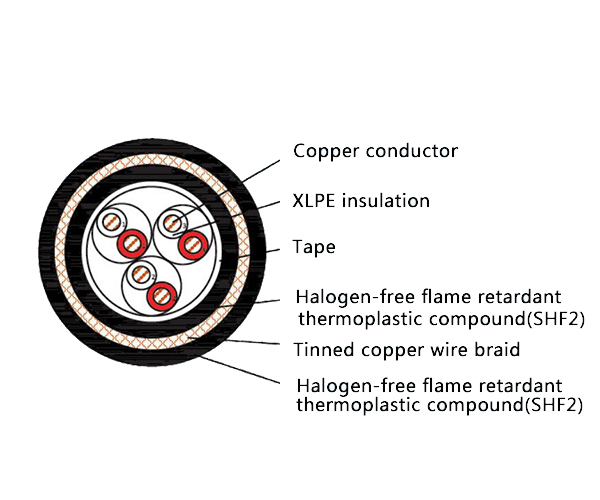

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested to meet the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is ideally suited for:
-
Sensitive telecommunication, computer network, and instrumentation systems on ships and offshore oil & gas platforms where EMI protection is vital for signal clarity.
-
Critical data and control circuits in industrial environments like power plants, chemical facilities, and mining operations that require a balance of mechanical and interference protection.
