Product Overview
The CHJV80/NA is a specialized Fire Resistant marine communication cable designed to maintain critical circuit integrity during fire emergencies. It features a robust XLPE and mica glass tape insulation system, tinned copper wire braid armor, and is supplied without an outer sheath (Code 0). This configuration provides maximum flexibility for installations where the armored cable core will be integrated into dedicated conduit or protective systems. Fully compliant with IEC 60331 for fire resistance and other key marine standards, it is ideal for vital telecommunications and data systems in safety-critical marine and industrial environments.
Key Features & Benefits
-
Certified Fire Resistance: Complies with IEC 60331, ensuring essential communication links remain operational during and after exposure to fire.
-
Enhanced Safety Design: Constructed with Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) materials, reducing toxic fumes and improving visibility. Also meets Flame Retardant (IEC 60332) requirements.
-
High-Performance Insulation: The Mica Glass Tape + XLPE insulation offers superior thermal endurance and electrical stability under extreme conditions.
-
Protected & Flexible Installation: The tinned copper wire braid armor provides mechanical protection and EMI shielding. The lack of an outer sheath allows for custom installation solutions, such as pulling into existing sealed conduit or applying site-specific jacketing.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 pairs.

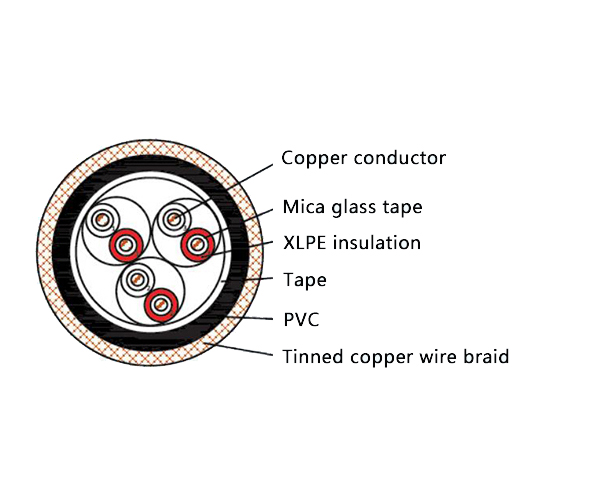

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | V | PVC (Polyvinyl Chloride) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for safety-critical communication pathways in:
-
Essential telecommunication, instrumentation, and data processing systems on ships, oil & gas platforms, and offshore structures.
-
Critical control and information networks in demanding industrial sectors such as power generation, chemical plants, metallurgy, and mining, particularly where custom external protection is specified.
