Product Overview
The CHJV/NA is a Fire Resistant marine communication cable designed to ensure the continued operation of essential telecommunication and data circuits during fire emergencies. Featuring a fire-survivable mica glass tape + XLPE insulation system and a protective PVC outer sheath, this non-armored cable offers a flexible and cost-effective solution for critical systems where maintaining circuit integrity under fire conditions is a key requirement, as per IEC 60331. It is suitable for fixed installations within protected environments on ships, offshore platforms, and in industrial plants.
Key Features & Benefits
-
Critical Fire Resistance (IEC 60331): The mica glass tape + XLPE insulation (Code J) is designed to maintain circuit integrity and continue operating under direct flame, ensuring that emergency communications and control signals remain active.
-
Flexible & Lightweight: The simple, non-armored construction with a PVC sheath (Code V) makes this cable highly flexible and easy to install in conduits, trays, and confined spaces.
-
Cost-Effective Fire Survival Solution: Provides essential fire-resistant performance for general communication circuits where the additional protection of screening or armor is not specified.
-
Flame Retardant: Complies with Flame Retardant standards (IEC 60332-1 & -3-22) to inhibit the spread of fire along the cable.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

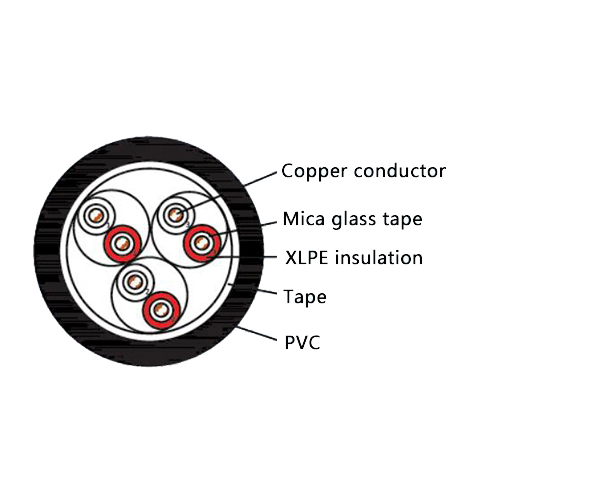

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Sheath | V | Polyvinyl Chloride (PVC) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is manufactured in compliance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This cable is designed for fixed wiring within protected environments where basic fire survival is required:
-
General telecommunication, instrumentation, and data circuits on ships and offshore platforms where routes are within protected conduits or enclosures.
-
Communication wiring in industrial plants, power generation, and mining where a cost-effective, fire-resistant cable is specified for general use.
