Product Overview
The CHJPFP80/NC is a specialized Fire Resistant, Low Smoke Halogen Free (LSHF) marine communication cable engineered for mission-critical telecommunication and data systems requiring ultimate installation flexibility and guaranteed circuit integrity during fire emergencies. It features a fire-resilient mica glass tape + XLPE insulation core, a Low Smoke Halogen Free (SHF1) inner sheath, an overall electromagnetic screen, and a highly flexible tinned copper wire braid armor. Supplied without an outer sheath (Code 0), this NC-grade cable provides a customizable, protected core for integration into custom conduits, panels, or systems requiring specific final over-jacketing or fireproofing, ensuring full compliance with IEC 60331 and IEC 60092 standards.
Key Features & Benefits
-
Guaranteed Fire Survival (IEC 60331): The mica glass tape + XLPE insulation (Code J) is engineered to maintain circuit operation during a fire, ensuring vital emergency communications, alarms, and control signals remain functional.
-
Enhanced Personnel Safety (LSHF/NC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties drastically reduce toxic fume emission and smoke density, critically improving safety for evacuation and firefighting in confined marine and offshore spaces.
-
Flexible Armor with Superior EMI Shielding: The tinned copper wire braid armor (Code 8) provides robust mechanical protection while ensuring high flexibility for complex routing. Combined with the overall screen (Code P), it offers excellent protection against electromagnetic interference (EMI) for signal clarity.
-
Maximum Customization & Integration Flexibility: The absence of an outer sheath allows system integrators and installers to apply a site-specific final over-sheath, conduit system, or additional fireproofing layer, perfectly tailoring the installation to unique environmental, mechanical, and safety requirements.
-
Protected Internal Core: The LSHF SHF1 inner sheath (Code PF) provides initial environmental and safety protection to the cable core before the application of the armor and final user-defined jacket.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

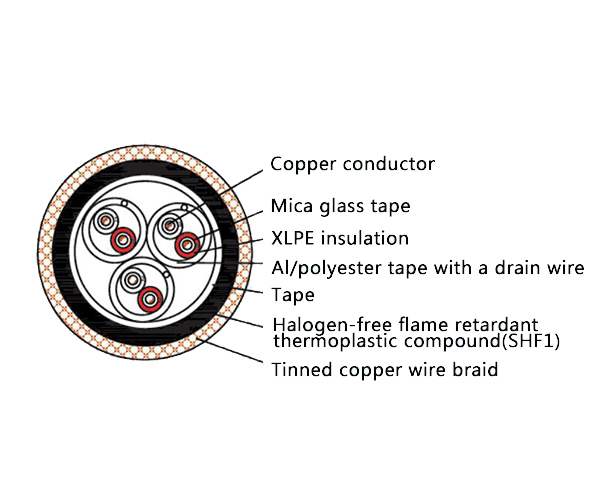

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for the most critical, customizable installations where fire survival, EMI protection, and flexibility are required:
-
Emergency telecommunication, command systems, and critical data networks within custom-built panels, protected conduits, or proprietary systems on naval vessels, oil & gas platforms, and offshore installations.
-
Vital infrastructure in power plants, chemical processing, and heavy industry where a fire-resistant, shielded, and flexible armored cable core is specified for final integration into a specialized containment or safety system.
