Product Overview
The CHJV92/NA is a robust Fire Resistant marine communication cable engineered for critical applications where maintaining circuit integrity during a fire and providing heavy-duty mechanical protection are essential. It features a fire-survivable mica glass tape + XLPE insulation core, a PVC inner sheath, a galvanized steel wire braid armor, and a final PVC outer sheath. This durable, double-sheathed armored construction is designed to ensure continuous operation of vital telecommunication, instrumentation, and data signals in fire emergencies (IEC 60331) while withstanding harsh physical environments on ships, offshore platforms, and in heavy industry.
Key Features & Benefits
-
Guaranteed Fire Survival (IEC 60331): The mica glass tape + XLPE insulation (Code J) maintains circuit integrity under fire, ensuring emergency and control signals remain functional.
-
Superior Mechanical & Crush Protection: The galvanized steel wire braid armor (Code 9) provides maximum resistance against impact, crushing, and mechanical damage.
-
Robust Environmental Sealing: The double-layer PVC sheath system (Inner V & Outer 2) offers excellent protection against abrasion, moisture, oils, and general environmental stress.
-
Flame Retardant: Complies with Flame Retardant standards (IEC 60332-1 & -3-22) to inhibit the spread of fire.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

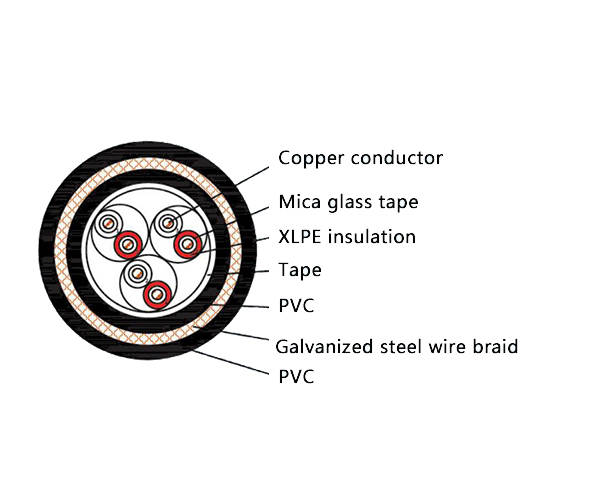

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | Polyvinyl Chloride (PVC) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is manufactured in compliance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This cable is designed for demanding fixed installations where fire survival and mechanical durability are critical:
-
Emergency telecommunication, alarm, and essential data networks on ships, oil & gas platforms, and offshore structures.
-
Vital control and communication circuits in power plants, chemical industry, metallurgy, and mining.
