Product Overview
The CKEF90/SA is a heavy-duty marine control cable designed for applications where robust mechanical protection and installation flexibility are paramount. It features EPR insulation, an oil-resistant PCP inner sheath, and a high-strength galvanized steel wire braid armor. Supplied without an outer sheath (Code 0), this SA flame-retardant cable is engineered for integration into control systems requiring custom conduit, jacketing, or protection, making it a versatile and durable solution for critical power, lighting, and control circuits on marine vessels, offshore platforms, and in demanding industrial environments in compliance with IEC 60092 standards.
Key Features & Benefits
-
Superior Mechanical & Crush Resistance: The galvanized steel wire braid armor (Code 9) provides maximum defense against impact, crushing, and physical damage in the toughest installation conditions.
-
Oil & Chemical Resistant Inner Core: The PCP inner sheath (Code F) protects the cable core from oils, chemicals, and moisture, ensuring internal integrity before the cable is integrated into its final protective system.
-
Customizable Final Protection: Supplied without an outer sheath, this cable offers exceptional flexibility for system designers and installers to apply a site-specific final jacket, conduit, or fireproofing layer tailored to the exact environmental and safety requirements.
-
Certified Flame Retardant: Rated for SA-grade Flame Retardancy (IEC 60332-1 & -3-22) for bunched installations, ensuring it contributes to a higher level of fire safety.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

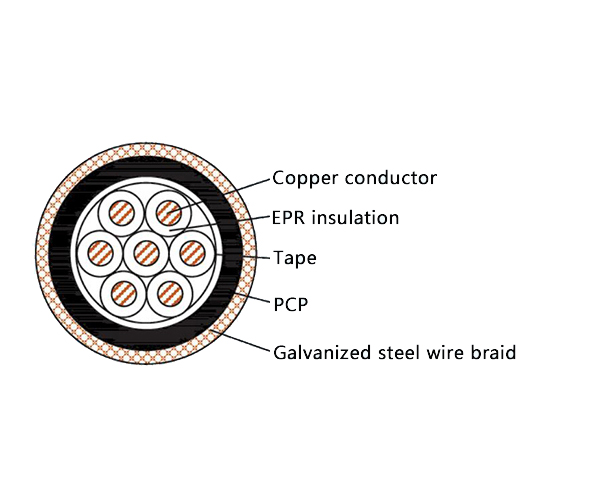

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | F | Polychloroprene (PCP) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in accordance with international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
Applications
This cable is designed for demanding, customizable fixed installations:
-
Control, power, and lighting systems on ships, offshore drilling platforms, and marine structures where maximum mechanical protection is required before final system integration.
-
Industrial control panels and heavy machinery in mining, power generation, chemical processing, and metallurgy sectors that require a durable, armored core for final installation within custom conduits or protective trunking.
