Product Overview
The CKEPJ/SC is a premium unarmored marine control cable engineered for applications where maximum fire safety, environmental durability, and material stability are critical. It combines reliable EPR insulation with an advanced cross-linked polyolefin (SHF2) outer sheath, achieving full Halogen-Free, Low Smoke Flame Retardant (LSHF/SC) certification. This cable is designed for reliable power, lighting, and control circuits in confined or high-safety areas on ships, offshore platforms, and in demanding industrial plants, offering superior performance in line with IEC 60092 standards.
Key Features & Benefits
-
Enhanced Fire Safety for Confined Spaces: Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic/corrosive fumes and smoke density, crucial for evacuation and firefighting. Certified for high Flame Retardancy (IEC 60332-1 & -3-22).
-
Superior Sheath Durability: The cross-linked polyolefin sheath (Code PJ, SHF2) is a thermoset material offering excellent resistance to heat, chemicals, abrasion, and environmental stress cracking, providing long-term reliability beyond standard thermoplastic sheaths.
-
Excellent Thermal & Electrical Stability: EPR insulation ensures stable performance at a continuous temperature of 90°C, while the cross-linked sheath maintains integrity under thermal stress.
-
Lightweight & Flexible: The non-armored, single-sheath design makes this cable lightweight and easy to install in cable trays, conduits, and control panels.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

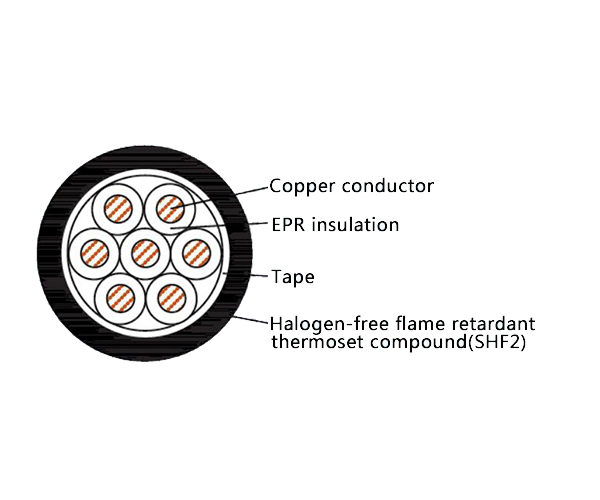

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specifically designed for high-safety and durable installations in:
-
Power, lighting, and control systems within engine rooms, control rooms, accommodation areas, and other confined spaces on ships and offshore platforms where LSHF properties are mandated or preferred.
-
Industrial control wiring in chemical plants, power generation facilities, and other harsh environments where superior chemical and thermal resistance from the cross-linked polyolefin sheath is required.
