Product Overview
The CKEPF86/NC is a double-sheathed, Fire Resistant (IEC 60331) marine control cable engineered for essential and emergency circuits requiring guaranteed circuit integrity under fire conditions. It features a Mica/EPR insulation system and copper braid armor, all within a robust dual-layer LSHF sheath, providing a comprehensive solution for critical power, lighting, and control systems in the most demanding marine and industrial environments. This cable is fully compliant with IEC 60092 standards.
Key Features & Benefits
-
Certified Fire Resistance: Complies with IEC 60331, ensuring continued operation of critical circuits such as emergency lighting, alarms, and shutdown systems during a fire event.
-
Enhanced Personnel Safety: Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic fumes and improve visibility for safe evacuation and firefighting.
-
Robust Mechanical & EMI Protection: Double-layer thermoplastic polyolefin (SHF1) sheath offers superior resistance to abrasion, oils, and chemicals. Tinned copper wire braid armor provides mechanical protection and effective electromagnetic interference (EMI) shielding.
-
All-Round Fire Performance: Combines Fire Resistant (IEC 60331) with Flame Retardant (IEC 60332) characteristics for maximum safety.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available on request).

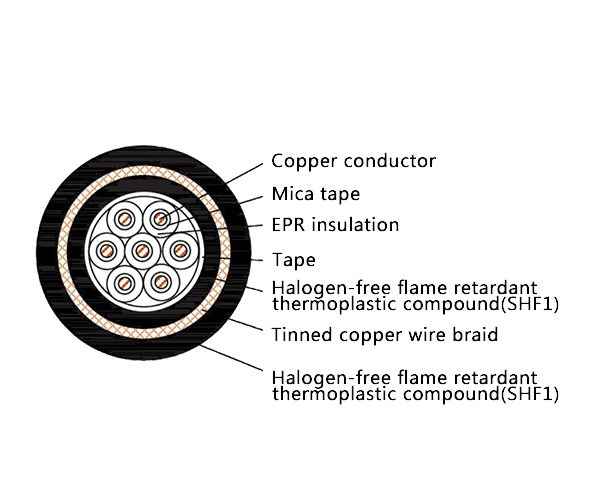

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR Insulation |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specifically designed for fixed installations in critical circuits within:
-
Marine & Offshore: Essential and emergency power, lighting, and control systems on ships, oil & gas platforms, and offshore installations.
-
Heavy Industry: Vital control, safety, and shutdown circuits in power plants, chemical processing facilities, mining operations, and metallurgy plants.
