Product Overview
The CKEFP82/NA is a Fire Resistant, Screened marine control cable engineered for critical power, lighting, and control systems requiring guaranteed circuit integrity during a fire, combined with flexible mechanical protection and signal clarity. It features a mica glass tape and EPR insulation core for certified fire resistance, an EMI/RFI screen, and is protected by a durable, oil-resistant Polychloroprene (PCP) inner sheath, flexible tinned copper wire braid armor, and a PVC outer sheath. This construction is ideal for vital circuits in demanding marine, offshore, and industrial environments where fire safety, flexibility, and durability are paramount.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): The mica glass tape barrier ensures the cable maintains circuit integrity and continues to operate for a specified period under direct flame, which is critical for emergency and safety systems.
-
Flexible Armor & Oil-Resistant Sheath: The tinned copper wire braid armor provides effective mechanical protection against abrasion and impact while offering greater installation flexibility. The PCP inner sheath delivers excellent resistance to oils, chemicals, and weathering.
-
EMI Shielding & Complete Protection: An integrated electrical screen protects sensitive control signals from electromagnetic interference. The combination of PCP and PVC sheaths provides comprehensive environmental and mechanical durability.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

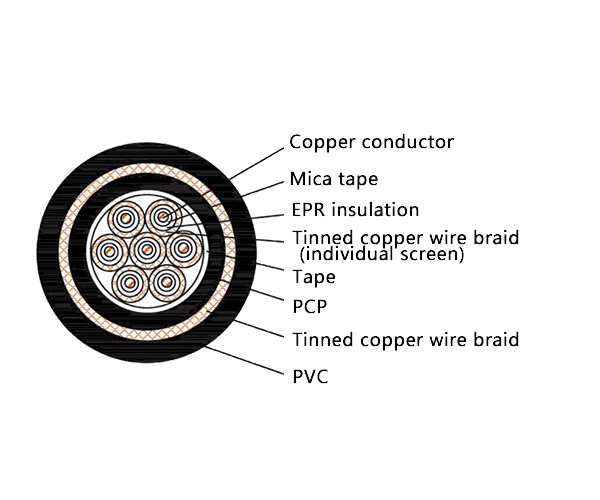

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Ethylene Propylene Rubber) Insulation |
| Inner Sheath | F | Polychloroprene (PCP) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 2 | PVC Outer Sheath |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
Applications
This cable is specified for essential safety and control circuits that require fire survivability, signal integrity, and a balance of durable, flexible protection.
-
Marine & Offshore: Emergency lighting, alarm systems, and critical control circuits on ships and offshore platforms, particularly in areas benefiting from flexible routing and where oil resistance is advantageous.
-
Industrial Safety Systems: Wiring for safety instrumented systems (SIS) and process controls in power plants, chemical, and manufacturing facilities where fire resistance, EMI protection, and flexible, durable construction are required.
