Product Overview
The CKEFP90/NA is a heavy-duty Fire Resistant, Screened marine control cable designed for critical safety and control circuits where operational continuity during a fire and maximum mechanical protection are essential. It features a mica glass tape and EPR insulation core for certified fire resistance, an EMI/RFI screen, and is protected by a durable, oil-resistant Polychloroprene (PCP) inner sheath and galvanized steel wire armor. With no outer oversheath, this streamlined, grounding-ready design is engineered for the most demanding marine, offshore, and industrial applications where fire, oil, and extreme physical stress are present.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): The mica glass tape barrier ensures circuit integrity is maintained under fire conditions, allowing critical emergency and shutdown systems to remain operational.
-
Maximum Mechanical & Oil-Resistant Protection: The galvanized steel wire braid armor provides supreme resistance to crushing, impact, and rodent damage. The PCP inner sheath offers exceptional resistance to oils, chemicals, abrasion, and weathering.
-
EMI Shielding & Grounding-Ready Design: An integrated electrical screen protects sensitive signals from interference. The exposed armor, with no outer oversheath, facilitates direct and reliable grounding to structural hulls or grounds.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.

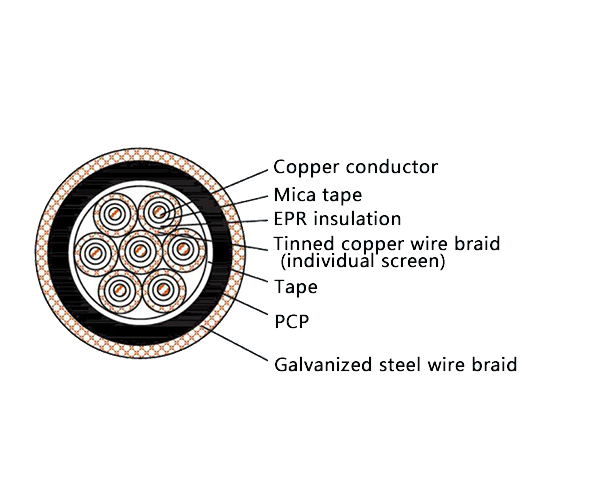

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Ethylene Propylene Rubber) Insulation |
| Inner Sheath | F | Polychloroprene (PCP) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
Applications
This cable is specified for mission-critical circuits in the most demanding, oily, and hazardous environments where armor grounding is required.
-
Marine & Offshore: Emergency Shutdown (ESD) systems, fire pump controls, and essential safety circuits in ship engine rooms, machinery spaces, and on offshore platforms, particularly in oily environments.
-
Heavy Industrial Plants: Control wiring for safety instrumented systems (SIS) in petrochemical plants, refineries, and heavy industry where fire resistance, oil resistance, extreme mechanical durability, and a grounded armor path are required.
