Product Overview
The CKEFP92/NA is a heavy-duty Fire Resistant, Screened marine control cable engineered for the most critical safety and control circuits where operational integrity during a fire must be combined with superior mechanical protection and signal clarity. It features a mica glass tape and EPR insulation core for certified fire resistance, an EMI/RFI screen, and is protected by a durable Polychloroprene (PCP) inner sheath, galvanized steel wire armor, and a PVC outer sheath. This robust construction is designed for vital systems in extreme marine, offshore, and industrial applications where fire, physical stress, and environmental hazards are present.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): The mica glass tape barrier ensures circuit integrity is maintained under fire conditions, allowing critical emergency and shutdown systems to remain operational.
-
Maximum Mechanical & Environmental Protection: The galvanized steel wire braid armor provides supreme resistance to crushing, impact, and rodent damage. The PCP inner sheath offers excellent oil, chemical, and weathering resistance.
-
EMI Shielding & Complete Sheath System: An integrated electrical screen protects sensitive signals from interference. The combination of a tough PCP layer and an outer PVC sheath provides comprehensive environmental and mechanical durability.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

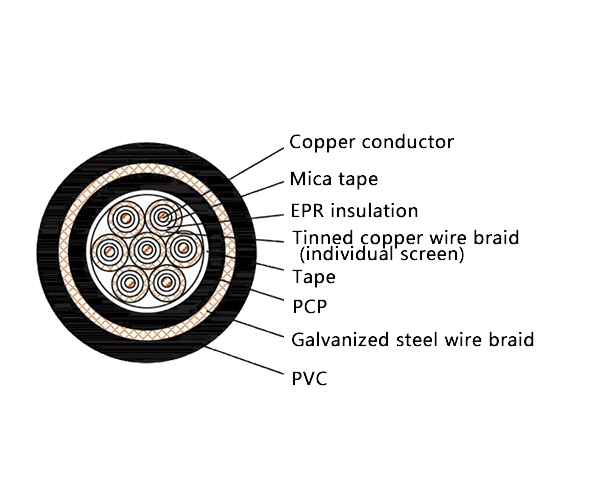

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Ethylene Propylene Rubber) Insulation |
| Inner Sheath | F | Polychloroprene (PCP) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | PVC Outer Sheath |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
Applications
This cable is specified for mission-critical circuits in the most demanding and hazardous environments.
-
Marine & Offshore: Emergency Shutdown (ESD) systems, fire pump controls, and essential safety circuits on ships, oil platforms, and FPSOs, especially in oily, exposed deck areas and engine rooms.
-
Heavy Industrial Plants: Control wiring for safety instrumented systems (SIS) in petrochemical plants, refineries, and mining where fire resistance, oil resistance, and extreme mechanical durability are required.
