Product Overview
The CKEFP/NA is a specialized Fire Resistant, Screened marine control cable designed for critical power, lighting, and control systems where maintaining circuit integrity during a fire is essential. It features a core of EPR insulation over a mica glass tape layer for certified fire resistance, an integrated electrical screen, and an outer Polychloroprene (PCP) sheath known for its excellent durability and oil resistance. This cable is engineered for vital circuits in demanding marine, offshore, and industrial environments, ensuring operational continuity and signal clarity in emergency conditions, in compliance with IEC 60092 and the key IEC 60331 fire resistance standard.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): Constructed with a mica glass tape barrier beneath EPR insulation, this cable is designed to maintain circuit integrity and continue functioning for a specified period under direct flame, a critical requirement for safety and emergency systems.
-
EMI/RFI Shielding & Durable Sheath: An integrated electrical screen provides reliable protection against electromagnetic and radio frequency interference (EMI/RFI). The outer Polychloroprene (PCP) sheath offers superior resistance to oils, abrasion, weathering, and mechanical stress, ensuring long-term durability in harsh conditions.
-
Flexible & Heat-Resistant Insulation: EPR (Ethylene Propylene Rubber) insulation provides excellent thermal stability (rated for 90°C), flexibility, and aging performance, complementing the fire-resistant design.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Sheath Color: Black (other colors available upon request).

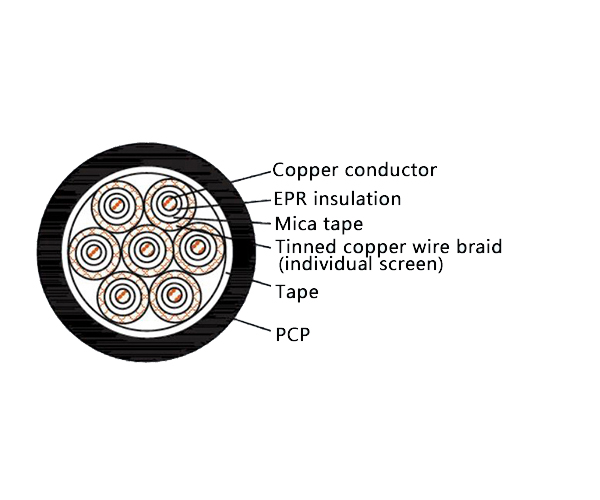

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Ethylene Propylene Rubber) Insulation |
| Sheath | F | Polychloroprene (PCP) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
Applications
This cable is engineered for vital safety and control circuits where fire survivability, signal integrity, and exceptional sheath durability are required.
-
Marine & Offshore: Critical control circuits for emergency shutdown (ESD), fire pumps, alarms, and essential communications on ships, oil rigs, and offshore platforms, especially in oily or exposed environments.
-
Industrial Safety Systems: Wiring for safety instrumented systems (SIS), burner management, and process controls in power generation, petrochemical, and manufacturing plants where fire resistance and a tough, oil-resistant sheath are necessary.
