Product Overview
The CKEPFP86/NC is an advanced Fire Resistant and Low Smoke Halogen Free (LSHF) marine control cable, engineered for critical safety and control systems that demand the highest levels of operational integrity and personnel safety during fire incidents. Featuring a mica glass tape and EPR insulation core for certified fire resistance, combined with Halogen-Free Low Smoke properties, an EMI/RFI screen, and a flexible tinned copper wire braid armor within a double-layer Thermoplastic Polyolefin (SHF1) sheath, this cable provides an optimal balance of protection, flexibility, and signal clarity for the most demanding applications.
Key Features & Benefits
-
Dual Safety Certification: Fire Resistant (IEC 60331) to ensure circuit continuity under fire, and Halogen-Free Low Smoke (IEC 60754 & 61034) to minimize toxic fume and smoke emission, addressing both system functionality and human safety.
-
Flexible Protection & EMI Shielding: The tinned copper wire braid armor offers excellent mechanical protection against abrasion and vibration while providing greater installation flexibility than steel armor. The integrated electrical screen ensures signal integrity by protecting against electromagnetic interference.
-
Enhanced Durability: The double-layer SHF1 sheath provides excellent overall mechanical toughness, moisture resistance, and protection against oils and chemicals, ensuring long-term environmental protection.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

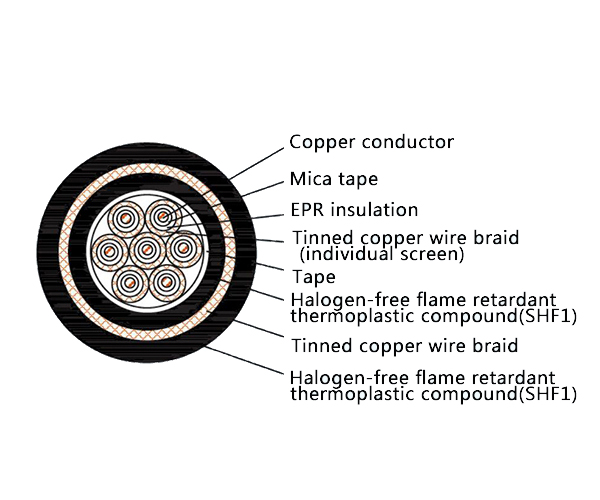

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Ethylene Propylene Rubber) Insulation |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for vital circuits that require fire survivability, enhanced personnel safety, signal integrity, and a balance of mechanical protection with installation flexibility.
-
Marine & Offshore: Critical alarm systems, emergency lighting, and control circuits on ships and offshore platforms where fire resistance and LSHF properties are mandated, and where flexible cable routing is advantageous.
-
Industrial Safety & Automation: Wiring for safety instrumented systems (SIS), process controls, and sensitive instrumentation in power plants, chemical facilities, and manufacturing plants where the highest standards of fire safety and EMI protection are required in a flexible cable design.
