Product Overview
The CKEPFP90/NC is a high-integrity Fire Resistant and Low Smoke Halogen Free (LSHF) marine control cable designed for critical power, lighting, and control circuits where operational continuity during a fire is imperative and personnel safety is enhanced. It features a mica glass tape and EPR insulation core for certified fire resistance, Halogen-Free Low Smoke safety properties, an EMI/RFI screen, and galvanized steel wire armor. This cable is protected by a single Thermoplastic Polyolefin (SHF1) inner sheath with no outer oversheath, offering a streamlined, grounding-ready solution for the most demanding marine, offshore, and industrial safety applications.
Key Features & Benefits
-
Dual Safety Certification: Fire Resistant (IEC 60331) to maintain circuit integrity under fire, and Halogen-Free Low Smoke (IEC 60754 & 61034) to minimize toxic and corrosive fume emissions, protecting both essential system function and personnel.
-
Maximum Mechanical & EMI Protection: The galvanized steel wire armor provides superior resistance to crushing, impact, and rodent damage. The integrated electrical screen protects sensitive control signals from electromagnetic interference (EMI/RFI).
-
Grounding-Ready & Robust Design: The single SHF1 sheath provides durable environmental protection. With no outer oversheath, the conductive armor is accessible for direct and reliable grounding to ship hulls or structural grounds, fulfilling critical electrical safety requirements.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.

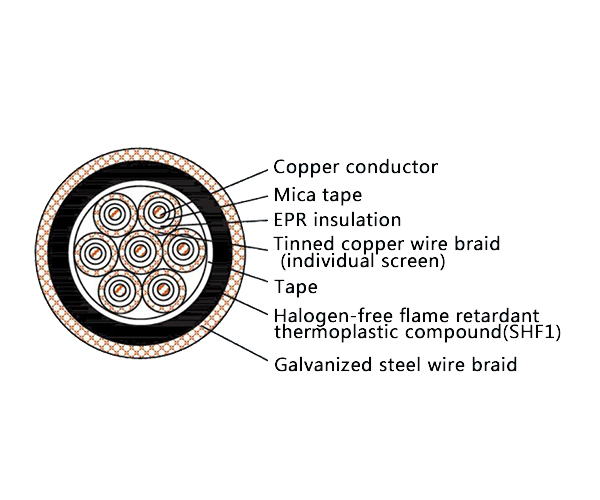

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Ethylene Propylene Rubber) Insulation |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for vital circuits that require guaranteed operation during a fire, enhanced personnel safety, and extreme mechanical protection with a dedicated grounding path.
-
Marine & Offshore: Emergency Shutdown (ESD) systems, fire pump controls, emergency lighting, and critical alarm circuits on ships and offshore platforms, where LSHF regulations apply and the armored cable must be bonded to the hull or structure for grounding.
-
Safety-Critical Industrial Plants: Essential control wiring for safety instrumented systems (SIS) and emergency functions in power plants and chemical facilities where fire resistance, low smoke toxicity, and a reliable grounded armor path are required.
