Product Overview
The CKEPJP90/NC is a premium Fire Resistant and Low Smoke Halogen Free (LSHF) marine control cable designed for the most critical safety and control circuits. Combining EPR insulation with a mica glass tape barrier for certified fire resistance, Halogen-Free Low Smoke safety properties, an EMI/RFI screen, and heavy-duty galvanized steel wire armor, this cable is protected by a single Cross-linked Polyolefin (SHF2) sheath with no outer oversheath. This streamlined, grounding-ready design is engineered for vital systems in harsh marine, offshore, and industrial environments where ultimate safety and reliability are required.
Key Features & Benefits
-
Dual Safety Certification: Fire Resistant (IEC 60331) to maintain circuit operation during a fire, and Halogen-Free Low Smoke (IEC 60754 & 61034) to minimize toxic fumes and smoke, ensuring both system integrity and personnel safety.
-
Maximum Mechanical & EMI Protection: The galvanized steel wire armor provides superior resistance to crushing and impact. An integrated electrical screen protects sensitive control signals from electromagnetic interference (EMI/RFI).
-
Grounding-Ready & Durable: The single SHF2 sheath offers excellent environmental protection. With no outer oversheath, the armor is accessible for direct and reliable grounding to structural hulls or panels, while the SHF2 material provides superior thermal and chemical resistance.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.

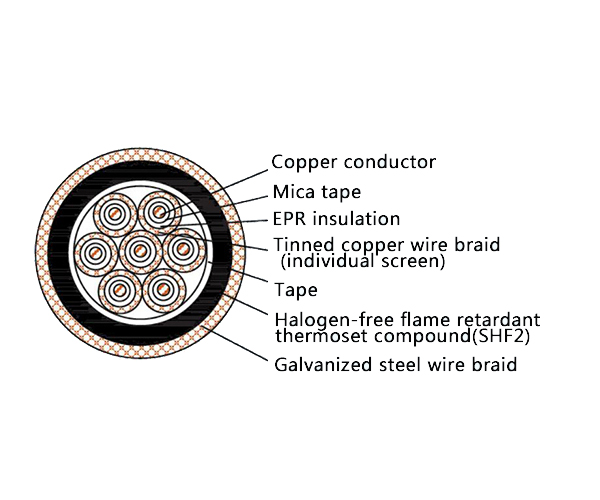

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Ethylene Propylene Rubber) Insulation |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for vital circuits that require guaranteed operation during a fire, enhanced personnel safety, and robust mechanical protection.
-
Marine & Offshore: Emergency Shutdown (ESD) systems, fire pump controls, emergency lighting, and critical alarm circuits on ships and offshore platforms, particularly where LSHF regulations apply and the armored cable must be grounded to the hull or structure.
-
Safety-Critical Industrial Plants: Essential control wiring for safety instrumented systems (SIS) and emergency functions in power plants and chemical facilities where fire resistance, low smoke toxicity, and a reliable grounded armor path are required.
