Product Overview
The CKEPJP95/NC is an elite Fire Resistant, Low Smoke Halogen Free (LSHF) marine control cable engineered for the most critical power, lighting, and control systems where circuit integrity during a fire and ultimate personnel safety are mandatory. Combining EPR insulation with a mica glass tape barrier for fire resistance, Halogen-Free Low Smoke safety properties, an EMI/RFI screen, and galvanized steel wire armor within a double-layer SHF2 sheath, it represents the pinnacle of safety and durability for vital circuits in extreme marine, offshore, and industrial applications.
Key Features & Benefits
-
Ultimate Dual Safety Certification: Fire Resistant per IEC 60331 to ensure operational continuity during a fire, and Halogen-Free Low Smoke (IEC 60754 & 61034) to minimize toxic fumes and smoke, protecting both critical systems and personnel.
-
Maximum Protection Package: The galvanized steel wire armor provides supreme mechanical protection against crushing and impact. The integrated electrical screen safeguards signal integrity from interference, while the double-layer SHF2 sheath offers unmatched environmental and chemical resistance.
-
High-Performance Construction: Every component is selected for extreme duty, from the flexible, heat-resistant EPR insulation (90°C) to the superior Cross-linked Polyolefin (SHF2) sheaths, ensuring long-term reliability in the harshest conditions.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

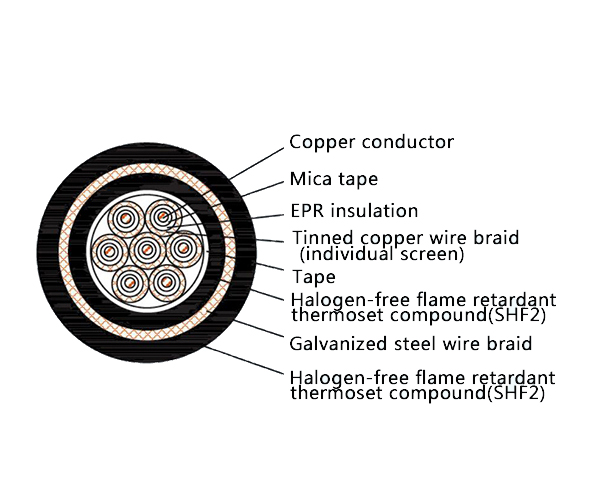

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Ethylene Propylene Rubber) Insulation |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the highest international safety standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for mission-critical circuits where failure is not an option, and installation environments are exceptionally severe.
-
Marine & Offshore: Emergency Shutdown (ESD) systems, fire pump controls, essential communication, and safety system circuits on ships, oil & gas platforms, and FPSOs, particularly in high-risk fire zones and exposed mechanical areas.
-
Critical Industrial Infrastructure: Safety instrumented systems (SIS) and control circuits in nuclear power facilities, petrochemical plants, mining, and heavy metallurgy where the highest standards of fire resistance, LSHF safety, and physical durability are legally and operationally required.
