Product Overview
The CKEVP80/NA is a specialized Fire Resistant, Screened marine control cable engineered for critical circuits where operational integrity during a fire must be maintained, and both electromagnetic shielding and flexible mechanical protection are required. It features a mica glass tape and EPR insulation core for certified fire resistance, an integrated EMI/RFI screen, and a flexible tinned copper wire braid armor. Protected by a single PVC inner sheath with no outer oversheath, this streamlined, grounding-ready design is ideal for vital safety and control systems in marine, offshore, and industrial plants, complying with the stringent IEC 60331 standard.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): The mica glass tape barrier ensures the cable maintains circuit integrity and continues to function for a specified period under direct flame, which is critical for emergency shutdown, alarm, and safety circuits.
-
Flexible Armor & EMI Shielding: The tinned copper wire braid armor provides effective mechanical protection against abrasion and impact while offering greater installation flexibility. The integrated electrical screen protects sensitive control signals from electromagnetic interference (EMI/RFI).
-
Grounding-Ready & Compact Design: The single PVC sheath over the armor, with no outer oversheath, allows for direct access to the conductive armor for secure grounding in panels or trays, and results in a more compact cable profile.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.

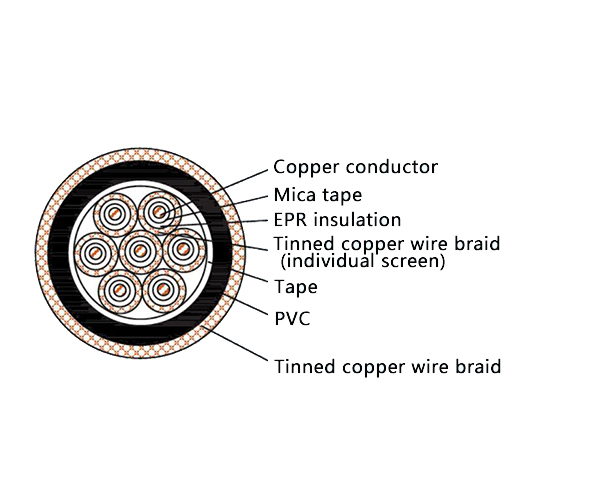

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Ethylene Propylene Rubber) Insulation |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
Applications
This cable is specified for essential circuits that require fire survivability, signal integrity, flexible protection, and a dedicated grounding path.
-
Marine & Offshore: Emergency lighting, alarm systems, and critical control circuits on ships and platforms where fire resistance is mandated and cable routing benefits from flexible armor.
-
Industrial Safety Systems: Wiring for safety instrumented systems (SIS) and process controls in power plants and chemical facilities where fire resistance, EMI protection, and a grounded, flexible construction are required.
