Product Overview
The CHEPF86/SC is a premium double-sheathed marine communication cable designed for environments demanding the highest levels of mechanical protection and fire safety. Building upon the robust foundation of EPR insulation and Halogen-Free Flame Retardant (LSHF) properties, it features an additional outer sheath, making it ideal for applications where enhanced durability and extra defense against abrasion, oils, and chemicals are required. It is fully compliant with the IEC 60092 series for maritime use.
Key Features & Benefits
-
Enhanced Mechanical & Environmental Protection: The dual-layer thermoplastic polyolefin (SHF1) sheath (Inner and Outer) provides superior resistance to abrasion, impact, moisture, oils, and chemicals, extending cable life in harsh marine and industrial settings.
-
Superior Fire Safety: Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic fumes and improve visibility. Certified for high Flame Retardancy (IEC 60332-1 & -3-22).
-
Robust EMI Shielding & Construction: EPR insulation ensures thermal stability (90°C) and flexibility. The tinned copper braid armor offers excellent mechanical protection and effective electromagnetic interference (EMI) shielding.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Pairs.
-
Standard Outer Sheath Color: Black (other colors available upon request).

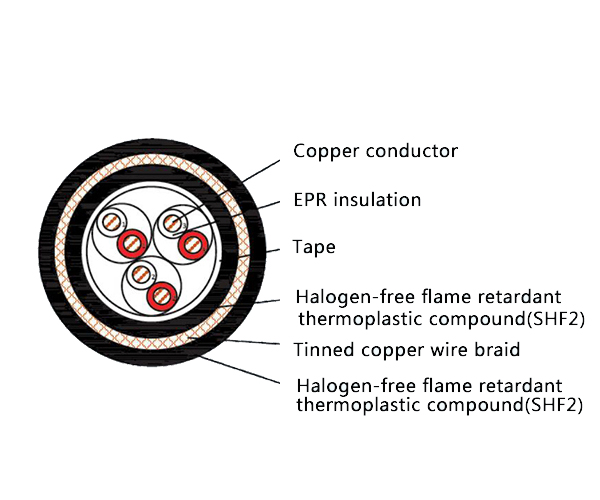

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for demanding fixed installations within:
-
Marine & Offshore: Telecommunication, instrumentation, and data systems on ships, oil platforms, and offshore rigs where extra mechanical protection is needed.
-
Heavy Industry: Control and communication networks in challenging environments of chemical plants, power generation facilities, mining operations, and metallurgy plants.
