Product Overview
The CHEF/SA is a flexible, unarmored marine communication cable designed for reliable signal and data transmission within protected environments. Featuring stable Ethylene Propylene Rubber (EPR) insulation and a durable Polychloroprene (PCP) sheath, it provides a lightweight and dependable solution for telecommunications, instrumentation, and computer network systems on ships, offshore platforms, and in industrial control settings. Its bunched flame retardant design ensures enhanced safety in cable runs.
Technical Specifications
-
Rated Voltage (U₀/U): 150/250 V
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Tinned or Plain Stranded, Annealed Copper Wire (IEC 60228)
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Cable Configuration: 1 to 37 Pairs (Symmetrical Communication Cable)

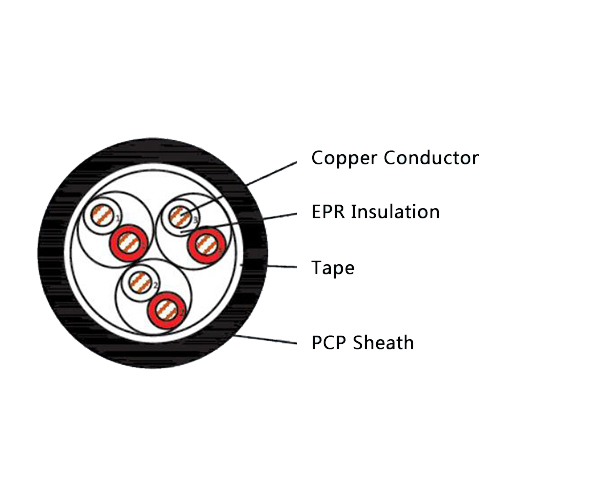

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR insulated |
| Sheath | F | PCP |
| Sheath Color | / | Black or other Color |
| Flammability | SA | Bunched Cables Flame Retardant |
Key Performance Characteristics
-
Stable Signal Transmission: EPR insulation ensures excellent dielectric properties for consistent signal integrity, minimizing loss in data, voice, and instrumentation circuits.
-
Environmental Durability: The Polychloroprene (PCP, Neoprene) sheath provides robust protection against oils, ozone, weathering, and abrasion, safeguarding the internal conductors.
-
High Flexibility & Lightweight: The unarmored design makes the cable highly flexible and easy to install in conduits, cable trays, and control panels within protected spaces.
-
Bunched Flame Retardancy (SA): Complies with IEC 60332-1 and IEC 60332-3-22 for flame retardancy when installed in bunched configurations, helping to inhibit flame spread.
-
Designed for Internal Networks: Ideal for fixed, protected installations where mechanical armor is not required but reliability and safety are essential.
Standards & Compliance
This communication cable is designed and manufactured in accordance with key international marine standards:
-
IEC 60092-350, 376 (General construction and requirements for communication cables)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath materials)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy tests)
Typical Applications
This cable is suitable for communication and data systems in protected environments:
-
Marine & Offshore: Internal telephone wiring, computer network cabling, instrumentation connections, and data links within accommodation areas, control rooms, and equipment racks on ships and offshore structures.
-
Industrial: Control system signaling, data acquisition networks, and general communication wiring in industrial plants, power stations, and other facilities with controlled environments.
