Product Overview
The CHEF92/SA is a heavy-duty, fully protected marine communication cable engineered for critical data and signal transmission in the most demanding environments. It combines stable Ethylene Propylene Rubber (EPR) insulation, a robust Polychloroprene (PCP) inner sheath, galvanized steel wire armor for supreme mechanical protection, and a complete PVC outer sheath. This dual-layer armored design ensures maximum durability and signal integrity for telecommunications, instrumentation, and control systems on ships, offshore platforms, and in harsh industrial facilities.
Technical Specifications
-
Rated Voltage (U₀/U): 150/250 V
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Tinned or Plain Stranded, Annealed Copper Wire (IEC 60228)
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Cable Configuration: 1 to 37 Pairs (Symmetrical Communication Cable)

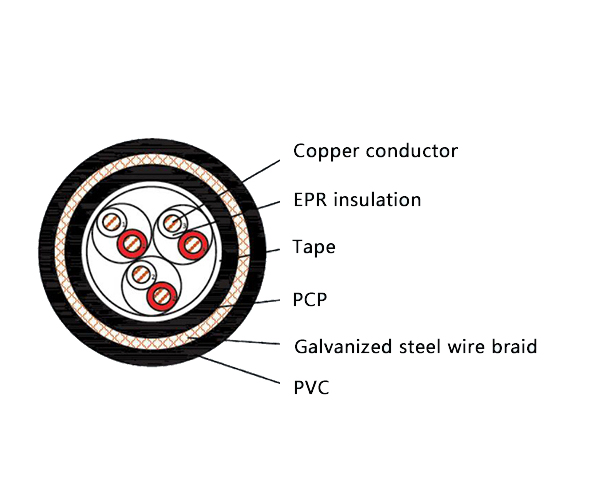

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR insulated |
| Inner Sheath | F | PCP |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | PVC Outer Sheath |
| Outer Sheath Color | / | Black or other Color |
| Flammability | SA | Bunched Cables Flame Retardant |
Key Performance Characteristics
-
Maximum Mechanical & Environmental Protection: The galvanized steel wire braid armor provides exceptional resistance to crushing, impact, and abrasion. The additional PVC outer sheath fully encapsulates the armor, offering a secondary barrier against moisture, chemicals, abrasion, and corrosion for long-term reliability in exposed areas.
-
Stable Signal Integrity: EPR insulation ensures consistent dielectric properties and minimal signal attenuation, which is crucial for reliable data, voice, and instrumentation transmission.
-
Durable Inner Protection: The Polychloroprene (PCP, Neoprene) inner sheath provides inherent resistance to oils, ozone, and weathering.
-
Bunched Flame Retardancy (SA): Complies with IEC 60332-1 and IEC 60332-3-22 for flame retardancy when installed in bunches, enhancing safety in cable trays and runs.
-
Designed for Fixed, Harsh Environments: Provides an all-in-one solution for communication networks where physical durability is as critical as signal performance.
Standards & Compliance
This communication cable is designed and manufactured in accordance with key international marine standards:
-
IEC 60092-350, 376 (General construction and requirements for communication cables)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath materials)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy tests)
Typical Applications
This cable is specified for the most critical and physically exposed communication and control installations:
-
Marine & Offshore: Essential data links for navigation systems, process control networks, emergency communications, and instrumentation on exposed decks, in engine rooms, and on offshore oil & gas platforms.
-
Heavy Industry & Utilities: Communication and control system wiring in power generation facilities, mining operations, and industrial plants where cables must withstand severe mechanical stress and environmental exposure.
