Product Overview
The CHEF90/SA is a heavy-duty marine communication cable designed to provide reliable data and signal transmission in the most demanding physical environments. Featuring stable Ethylene Propylene Rubber (EPR) insulation, a robust Polychloroprene (PCP) inner sheath, and galvanized steel wire braid armor, this cable offers maximum mechanical protection and durability for critical telecommunications, instrumentation, and data processing systems on ships, offshore platforms, and in harsh industrial settings.
Technical Specifications
-
Rated Voltage (U₀/U): 150/250 V
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Tinned or Plain Stranded, Annealed Copper Wire (IEC 60228)
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Cable Configuration: 1 to 37 Pairs (Symmetrical Communication Cable)

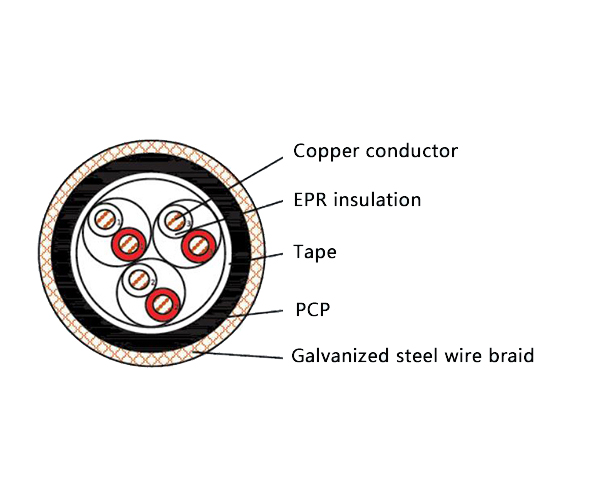

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR insulated |
| Inner Sheath | F | PCP |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant |
Key Performance Characteristics
-
Superior Mechanical Protection: The galvanized steel wire braid armor provides exceptional resistance to crushing, impact, and abrasion, safeguarding delicate communication circuits in exposed or high-risk areas.
-
Stable Signal Performance: EPR insulation ensures excellent dielectric properties and signal integrity, which is critical for accurate data and telecommunication transmission.
-
Environmental Durability: The Polychloroprene (PCP, Neoprene) inner sheath offers strong resistance to oils, ozone, weathering, and chemicals.
-
Bunched Flame Retardancy (SA): Complies with IEC 60332-1 and IEC 60332-3-22 for flame retardancy when installed in bunched configurations, helping to inhibit the spread of fire.
-
Designed for Fixed Installations: Provides long-term reliability in fixed marine and industrial communication networks.
Standards & Compliance
This communication cable is designed and manufactured in accordance with key international marine standards:
-
IEC 60092-350, 376 (General construction and requirements for communication cables)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath materials)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy tests)
Typical Applications
This cable is engineered for critical, fixed communication installations requiring maximum mechanical strength:
-
Marine & Offshore: Rugged data links for deck machinery control, instrumentation networks, essential communication lines, and process monitoring systems on vessels and offshore oil & gas platforms.
-
Heavy Industrial: Communication and control wiring in mining operations, power plants, and industrial facilities where cables are exposed to significant mechanical stress and harsh conditions.
