Product Overview
The CEPJR/NC is a premium, unarmored halogen-free, low-smoke, fire-resistant marine flexible power cable, designed for critical safety circuits within protected environments, especially those with elevated ambient temperatures. It combines superior Ethylene Propylene Rubber (EPR) insulation with a cross-linked polyolefin (SHF2) sheath, offering certified fire survival, enhanced thermal sheath resistance, and superior flexibility. This lightweight cable is the optimal choice for essential emergency and control systems where maximum fire safety and performance in warmer conditions are required.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Sheath Material (SHF2) Temperature Rating: Up to 105°C (Typical)
-
Conductor: Tinned or Plain Stranded, Annealed Copper Wire (Class 5/6 flexible) (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

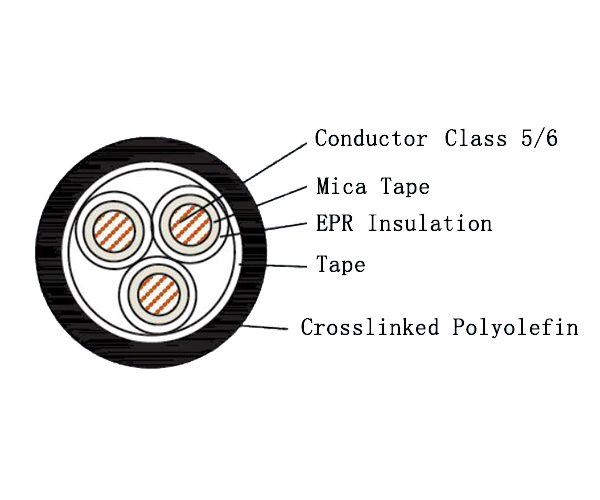

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire (Flexible Class 5/6) |
| Insulation | E | EPR insulated |
| Sheath | PJ | Cross-linked Polyolefin(SHF2) |
| Sheath Color | / | Black or other Color |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Key Performance Characteristics
-
Certified Fire Resistance (IEC 60331): The cable is engineered to maintain circuit integrity and continue operating for a specified period under direct flame exposure, a critical requirement for all life-safety and emergency circuits.
-
Halogen-Free & Low Smoke Safety: Complies with IEC 60754 (halogen-free) and IEC 61034 (low smoke density). This significantly reduces the emission of corrosive gases and dense smoke during a fire, enhancing personnel safety and visibility in confined spaces.
-
High-Temperature Resistant Sheath: The cross-linked polyolefin (SHF2) sheath offers improved thermal endurance and deformation resistance in elevated ambient temperature environments, ensuring long-term sheath integrity where standard thermoplastic sheaths may degrade.
-
Superior EPR Insulation: Ethylene Propylene Rubber (EPR) provides excellent dielectric properties, outstanding long-term thermal stability, and high flexibility for reliable electrical performance.
-
High Flexibility & Lightweight: As an unarmored cable with flexible Class 5/6 conductors, it offers exceptional ease of handling, routing, and installation in conduits, cable trays, and control panels.
Standards & Compliance
This cable is designed and tested in accordance with the highest international marine and fire safety standards:
-
IEC 60092-350, 353 (General construction and requirements)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath materials)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy)
-
IEC 60754 (Halogen-free)
-
IEC 61034 (Low smoke density)
Typical Applications
This cable is specified for critical circuits within protected spaces where fire survival, enhanced safety from fumes, and performance in warmer environments are mandatory:
-
Marine & Offshore: Essential emergency circuits such as emergency lighting, alarm and detection systems, and control wiring within engine control rooms, machinery spaces, or other areas with higher ambient temperatures on ships and offshore structures.
-
Critical Infrastructure: Safety-critical power and control wiring in public buildings, power plant control rooms, and industrial settings where regulations require fire-resistant, low-smoke, zero-halogen cabling with enhanced temperature resistance.
