Product Overview
The CEPFR/NC is a premium, halogen-free, low-smoke, fire-resistant marine flexible power cable designed for critical safety circuits within protected environments. Featuring superior Ethylene Propylene Rubber (EPR) insulation and a thermoplastic polyolefin (SHF1) sheath, it provides certified circuit integrity during a fire, enhanced personnel safety from reduced fumes, and excellent flexibility. This unarmored, lightweight cable is the ideal choice for essential emergency power, lighting, and control systems where maximum fire safety and ease of installation are required.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Tinned or Plain Stranded, Annealed Copper Wire (Class 5/6 flexible) (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

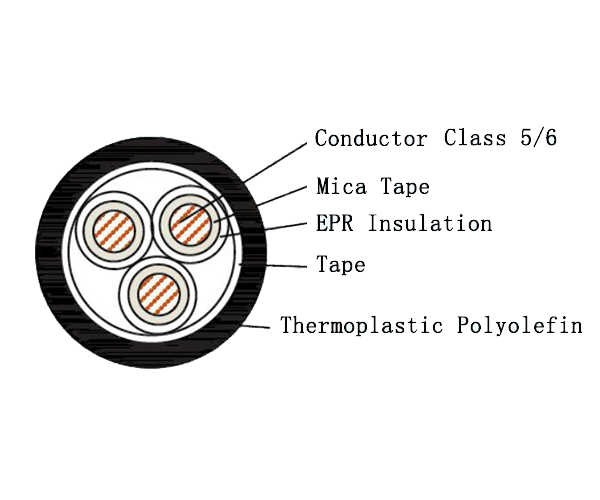

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire (Flexible Class 5/6) |
| Insulation | E | EPR insulated |
| Sheath | PF | Thermoplastic Polyolefin(SHF1) |
| Sheath Color | / | Black or other Color |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Key Performance Characteristics
-
Certified Fire Resistance (IEC 60331): The cable is engineered to maintain circuit integrity and continue operating for a specified period under direct flame exposure, which is critical for all emergency and life-safety circuits.
-
Halogen-Free & Low Smoke Safety: Complies with IEC 60754 (halogen-free) and IEC 61034 (low smoke density). This combination minimizes the emission of corrosive gases and dense smoke during a fire, significantly enhancing personnel safety and visibility in confined spaces.
-
Superior EPR Insulation: Ethylene Propylene Rubber (EPR) provides excellent dielectric strength, outstanding long-term thermal stability, and high flexibility, ensuring reliable and durable electrical performance.
-
High Flexibility & Lightweight: As an unarmored cable with flexible Class 5/6 conductors, it offers exceptional ease of handling, routing, and installation in conduits, cable trays, and control panels.
-
Flame Retardant: Meets IEC 60332-1 and IEC 60332-3-22 standards, inhibiting the spread of flame along the cable run.
Standards & Compliance
This cable is designed and tested in accordance with the highest international marine and fire safety standards:
-
IEC 60092-350, 353 (General construction and requirements)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath materials)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy)
-
IEC 60754 (Halogen-free)
-
IEC 61034 (Low smoke density)
Typical Applications
This cable is specified for critical circuits within protected spaces where fire survival and enhanced safety from fumes are mandatory:
-
Marine & Offshore: Essential emergency circuits such as emergency lighting, alarm and detection systems, communication systems, and control wiring within accommodation areas, control rooms, and safe zones on ships and offshore structures.
-
Critical Infrastructure: Safety-critical power and control wiring in public buildings, hospitals, tunnels, power plant control rooms, and industrial settings where the highest standards of fire-resistant, low-smoke, zero-halogen cabling are required.
