Product Overview
The CEPFR96/NC represents the ultimate in safety and durability for halogen-free marine flexible power cables. It is a premium halogen-free, low-smoke, fire-resistant cable engineered for the most critical circuits where maintaining operation during a fire, withstanding extreme physical stress, and providing full environmental protection are all essential. This cable combines Ethylene Propylene Rubber (EPR) insulation, a complete thermoplastic polyolefin (SHF1) dual-sheath system, and galvanized steel wire armor to deliver an uncompromising solution for vital safety and power systems in the most severe marine and industrial environments.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Tinned or Plain Stranded, Annealed Copper Wire (Class 5/6 flexible) (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

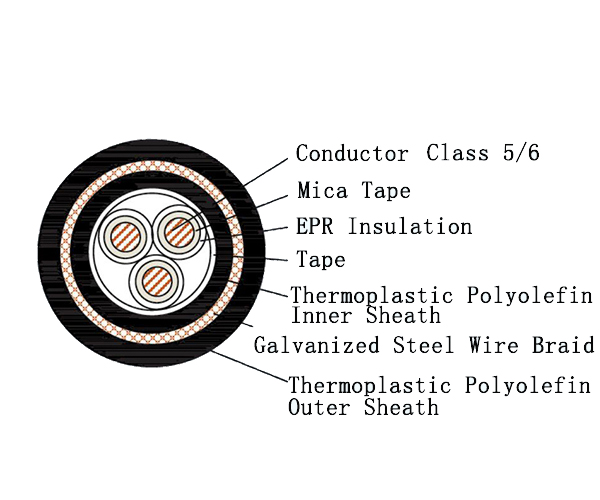

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire (Flexible Class 5/6) |
| Insulation | E | EPR insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin(SHF1) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin(SHF1) |
| Outer Sheath Color | / | Black or other Color |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Key Performance Characteristics
-
Certified Fire Resistance (IEC 60331): The cable is engineered to maintain circuit integrity and continue operating for a specified duration under direct flame, which is non-negotiable for life-safety and emergency power circuits.
-
Complete Halogen-Free Safety Package: Integrates fire resistance (IEC 60331) with halogen-free materials (IEC 60754) and low smoke emission (IEC 61034), minimizing corrosive gas and dense smoke production during a fire to maximize personnel safety and visibility.
-
Maximum Mechanical & Environmental Protection: The galvanized steel wire braid armor offers supreme defense against crushing, impact, and tensile stresses. The full SHF1 outer sheath fully encapsulates the armor, providing an additional robust barrier against abrasion, moisture, oils, chemicals, and corrosion.
-
High Flexibility: Utilizes flexible Class 5/6 conductors, ensuring the cable remains manageable for installation in complex cable management systems despite its heavy-duty, fully protected construction.
-
Flame Retardant: Meets IEC 60332-1 and IEC 60332-3-22 standards, inhibiting the spread of flame along the cable run.
Standards & Compliance
This cable is designed and tested in accordance with the highest international marine and fire safety standards:
-
IEC 60092-350, 353 (General construction and tests)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath materials)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy)
-
IEC 60754 (Halogen-free)
-
IEC 61034 (Low smoke density)
Typical Applications
This cable is specified for the most critical, physically exposed, and safety-sensitive installations:
-
Marine & Offshore: Vital power feeds to emergency generators and fire pumps, critical alarm and control circuits, and essential systems on exposed decks or in engine rooms on passenger ships, naval vessels, and offshore platforms.
-
Critical Infrastructure & Heavy Industry: Safety-critical wiring in power plants, chemical processing facilities, tunnels, mining operations, and any application where regulations demand certified fire-resistant cabling with the highest level of mechanical and environmental protection.
