Product Overview
The CEVR80/SA is a versatile marine flexible power cable designed for applications that require a balance of excellent electrical performance, cost-effectiveness, and electromagnetic shielding. It features durable Ethylene Propylene Rubber (EPR) insulation, a PVC inner sheath, and tinned copper wire braid armor. This construction provides a flexible and shielded solution for power, lighting, and control circuits in various marine and industrial environments.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Tinned or Plain Stranded, Annealed Copper Wire (Class 5/6 flexible) (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

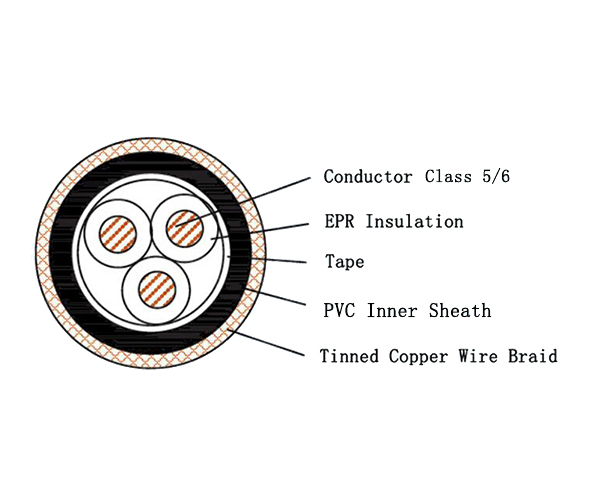

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire (Flexible Class 5/6) |
| Insulation | E | EPR insulated |
| Inner Sheath | V | PVC |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant |
Key Performance Characteristics
-
Superior EPR Insulation: Ethylene Propylene Rubber (EPR) provides excellent dielectric properties, thermal stability, and flexibility, ensuring reliable power transmission and long service life.
-
Effective EMI Shielding: The tinned copper wire braid armor offers reliable protection against electromagnetic interference (EMI), making it suitable for sensitive control circuits.
-
Cost-Effective & Durable: The PVC inner sheath provides good mechanical and basic environmental protection at an economical cost point.
-
High Flexibility: Designed with flexible Class 5/6 conductors and braided armor, the cable remains easy to install in confined spaces and complex cable trays.
-
Bunched Flame Retardancy (SA): Complies with IEC 60332-1 and IEC 60332-3-22 for flame retardancy when installed in bunched configurations.
Standards & Compliance
This cable is designed and manufactured in accordance with key international marine standards:
-
IEC 60092-350, 353 (General construction and tests)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath materials)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy tests)
Typical Applications
This cable is well-suited for general-purpose installations requiring flexibility and EMI shielding:
-
Marine & Offshore: Power, lighting, and control system wiring for auxiliary machinery and general shipboard applications.
-
Industrial: Flexible connections in control cabinets, instrumentation, and industrial equipment where EMI protection is beneficial.
