Product Overview
The CJVR/NA is a flexible, unarmored marine power cable engineered for critical circuits where fire resistance is the primary safety requirement. Featuring a mica glass tape and XLPE insulation system for certified fire survival, and a PVC inner sheath, this cable provides a reliable and cost-effective solution for essential emergency and safety systems within protected enclosures on vessels and in industrial settings.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Tinned or Plain Stranded Annealed Copper Wire (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

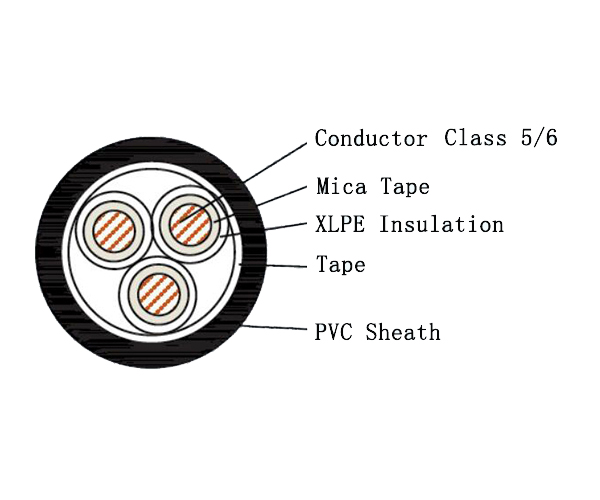

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE insulated |
| Inner Sheath | V | PVC |
| Sheath Color | / | Black or other Color |
| Flammability | NA | Fire Resistant |
Key Performance Characteristics
-
Certified Fire Resistance (IEC 60331): The mica glass tape and XLPE insulation core is designed to maintain circuit integrity and continue operating for a specified period under direct flame, which is essential for all emergency and life-safety circuits.
-
High Flexibility & Lightweight: As an unarmored cable, it offers excellent flexibility and reduced weight, facilitating easier and faster installation in conduits, cable trays, and control panels.
-
Cost-Effective Safety Solution: Provides the critical feature of certified fire resistance with a practical PVC sheath, offering a reliable safety solution for applications where this specific performance is mandated.
-
Flame Retardant: Complies with IEC 60332-1 and IEC 60332-3-22, helping to inhibit the spread of flame along the cable run.
Standards & Compliance
This cable is designed and tested in accordance with key international safety standards:
-
IEC 60092-350, 353 (General construction and requirements)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy)
Typical Applications
This cable is specified for critical circuits within protected spaces where fire survival capability is required:
-
Marine & Offshore: Essential emergency circuits such as emergency lighting, alarm and detection systems, and control wiring within accommodation areas and control rooms on ships and offshore structures.
-
Industrial: Safety-critical power and control wiring in industrial control panels, power stations, and facilities where fire-resistant cabling is specified by regulation for protected internal routes.
