Product Overview
The CJVR90/NA is a heavy-duty, fire-resistant marine flexible power cable designed for critical safety circuits that demand both certified circuit integrity during a fire and superior mechanical strength. It features a fire-resistant core of mica glass tape and XLPE insulation, a PVC inner sheath, and galvanized steel wire armor. This robust construction is essential for ensuring the continued operation of emergency systems in physically demanding environments on vessels and offshore installations.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Tinned or Plain Stranded Annealed Copper Wire (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

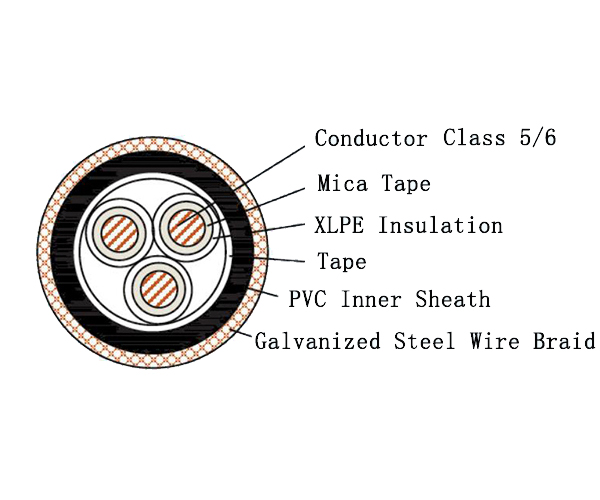

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE insulated |
| Inner Sheath | V | PVC |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Key Performance Characteristics
-
Certified Fire Resistance (IEC 60331): The mica glass tape and XLPE insulation system ensures the cable maintains circuit integrity and continues to function for a specified period under direct flame, which is critical for life-safety and emergency circuits.
-
Maximum Mechanical Protection: The galvanized steel wire braid armor provides exceptional resistance to crushing, impact, and tensile stresses, protecting the critical fire-resistant core in exposed or hazardous locations.
-
Cost-Effective Durability: Offers a robust, fire-safe cable solution with the economic and protective advantages of a PVC inner sheath and steel armor, suitable for applications where halogen-free properties are not specified.
Standards & Compliance
This cable is designed and manufactured in accordance with key international marine and safety standards:
-
IEC 60092-350, 353 (General construction and armor)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy)
Typical Applications
This armored fire-resistant cable is specified for critical circuits where operation during a fire and physical survivability are required:
-
Marine & Offshore: Essential power feeds to emergency generators, fire pump control circuits, and critical alarm systems on ships and offshore platforms, especially in areas prone to physical damage.
-
Industrial: Safety-critical power and control wiring in heavy industrial settings, power plants, and infrastructure where fire-resistant cabling with high mechanical protection is mandated.
