Product Overview
The CJPJR80/NC is a premium halogen-free, low-smoke, fire-resistant marine flexible power cable engineered for critical circuits operating in higher ambient temperature environments. It uniquely combines a mica glass tape and XLPE fire-resistant insulation system with a fully cross-linked polyolefin (SHF2) dual-sheath and tinned copper wire braid armor. This design provides certified circuit integrity during a fire, superior thermal endurance, effective EMI shielding, and robust mechanical protection for the most demanding safety systems.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Sheath Material (SHF2) Temperature Rating: Up to 105°C (Typical)
-
Conductor: Tinned or Plain Stranded Annealed Copper Wire (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

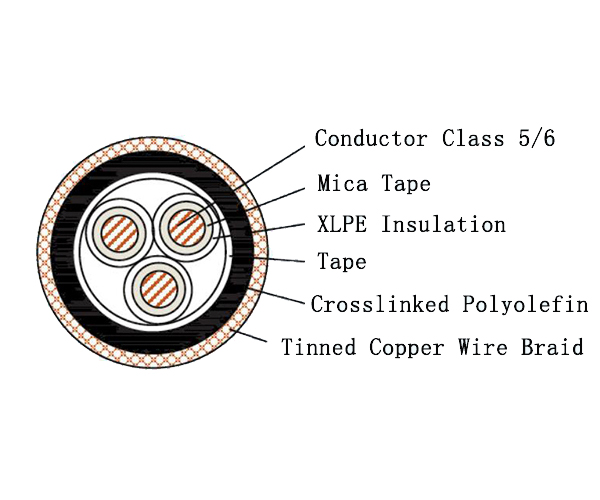

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE insulated |
| Inner Sheath | PJ | Cross-linked Polyolefin(SHF2) |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 5 | Cross-linked Polyolefin(SHF2) |
| Outer Sheath Color | / | Black or other Color |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Key Performance Characteristics
-
Certified Fire Resistance (IEC 60331): The mica glass tape and XLPE insulation system ensures the cable maintains circuit integrity and continues to operate for a specified duration under direct fire, which is essential for all critical emergency circuits.
-
Enhanced High-Temperature Sheath Performance: Both the inner and outer sheaths are made from cross-linked polyolefin (SHF2), providing superior thermal stability and resistance to deformation in elevated ambient temperature environments compared to standard thermoplastic sheaths.
-
Comprehensive Fire Safety Package: Integrates fire resistance with flame retardancy (IEC 60332), halogen-free materials (IEC 60754), and low smoke emission (IEC 61034) for maximum personnel safety and equipment protection during a fire event.
-
Effective Shielding & Durability: The tinned copper wire braid armor provides excellent electromagnetic compatibility (EMC) shielding. The tough, cross-linked outer sheath offers an additional layer of mechanical and environmental protection for the armor and core.
Standards & Compliance
This cable is manufactured to the highest international marine fire safety and construction standards:
-
IEC 60092-350, 353 (General construction and armor)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy)
-
IEC 60754 (Halogen-free)
-
IEC 61034 (Low smoke density)
Typical Applications
This cable is specified for critical safety circuits where fire resistance must be coupled with performance in higher temperature areas and reliable EMI shielding:
-
Marine & Offshore: Essential feeds and control circuits for emergency generators, fire pumps, alarm systems, and emergency lighting located in engine rooms, machinery spaces, or other areas with elevated ambient temperatures on ships and offshore platforms.
-
Critical Infrastructure & Industrial: Safety-critical power and control wiring in power plants, industrial process control systems, and facilities where both certified fire-resistant cabling and enhanced temperature resistance for the sheath are required.
