Product Overview
The CJPFR/SC is a versatile, halogen-free, low-smoke, flame-retardant marine flexible power cable. Designed without armor for applications where maximum flexibility and weight savings are key, it features fine-stranded Class 5/6 conductors and XLPE insulation protected by a single robust sheath. This cable provides a reliable and safe wiring solution for controlled environments on ships and in industrial settings.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Class 5/6 (Fine Strand) Tinned Annealed Copper Wire (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

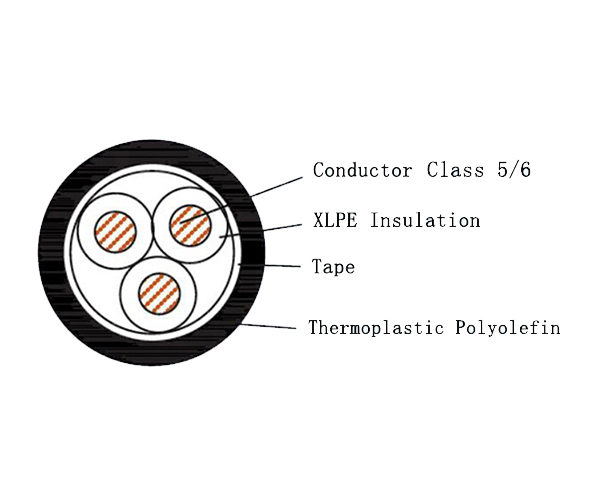

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Class 5/6(R) Tinned Annealed Copper Wire |
| Insulation | J | XLPE Insulated |
| Sheath | PF | Thermoplastic Polyolefin(SHF1) |
| Sheath Color | / | Black or other Color |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Key Performance Characteristics
-
Superior Flexibility & Light Weight: The combination of fine-stranded (Class 5/6) conductors and a single sheath design results in an exceptionally flexible and lightweight cable, ideal for easy pulling, routing in tight spaces, and installations where weight is a concern.
-
Flame Retardant & Enhanced Safety: Complies with IEC 60332-1 and IEC 60332-3-22 to inhibit flame spread. The halogen-free, low-smoke sheath material minimizes corrosive gas emission and reduces smoke density in case of fire, improving visibility and safety.
-
Excellent Electrical Properties: XLPE insulation provides high dielectric strength, excellent insulation resistance, and stable performance over a wide temperature range.
-
Environmental Resistance: The thermoplastic polyolefin (SHF1) sheath offers good resistance to moisture, oils, and abrasion, suitable for various protected environments.
-
Thermal Endurance: Rated for continuous operation at 90°C, ensuring reliability in demanding electrical circuits.
Standards & Compliance
This cable is designed and tested in accordance with key international standards for marine electrical equipment:
-
IEC 60092-350, 353 (General construction and requirements for shipboard power cables)
-
IEC 60228 (Conductors of insulated cables)
-
IEC 60092-360 (Insulating and sheathing materials)
-
IEC 60332-1 & IEC 60332-3-22 (Tests for flame retardancy)
Typical Applications
This unarmored flexible cable is perfectly suited for installations within protected enclosures or areas with minimal risk of mechanical damage:
-
Marine & Offshore: Internal wiring for control panels, switchboards, instrumentation, lighting, and auxiliary power circuits inside accommodation areas, control rooms, and electrical cabinets on ships and offshore platforms.
-
Industrial: Power and control wiring in control systems, machinery, and well-protected cable trays within plants, power stations, and manufacturing facilities where high flexibility is required.
