Product Overview
The CJVP90/NA is a heavy-duty fire resistant marine power cable engineered to ensure circuit integrity for the most critical safety systems under severe mechanical stress and fire conditions. It features the essential Mica Glass Tape + XLPE composite insulation, certified to maintain operation during a fire (IEC 60331). Its core is protected by a standard PVC inner sheath and, most notably, a high-strength galvanized steel wire braid armor for maximum crush and impact resistance. This cost-effective shielded cable is designed to provide reliable power to emergency circuits in exposed, high-risk marine and industrial locations where extreme durability and fire survival are paramount.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): Guarantees that vital emergency circuits (e.g., emergency generator feeds, fire pump power, alarm systems) remain operational for a specified duration under direct flame and mechanical shock, critical for life safety.
-
Maximum Mechanical Protection: A braided armor of galvanized steel wires provides supreme protection against crushing, impact, and pulling forces, making it ideal for exposed cable runs or areas with severe physical hazards.
-
Fire-Survival Core Construction: The Mica Glass Tape layer over XLPE insulation forms a robust, heat-resistant ceramic barrier that maintains electrical insulation integrity at extreme temperatures, preventing circuit failure during a fire.
-
Cost-Effective & Durable Sheathing: Utilizes a proven PVC inner sheath, offering good resistance to abrasion, moisture, and oils at a competitive price point for applications where halogen-free materials are not mandated.
-
Effective EMI Shielding: The integrated collective copper screen protects against electromagnetic interference, ensuring signal integrity for power and control circuits.

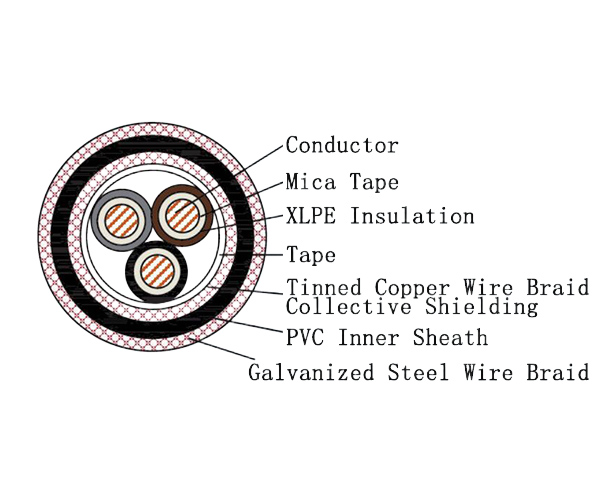

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Screen | P | Collective Copper Screen |
| Armour | 9 | Braid of Galvanized Steel Wires |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability Class | NA | Fire Resistant |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Mica Glass Tape + Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | Polyvinyl Chloride (PVC) |
| Screen | Collective Copper Screen |
| Armour | Braided Galvanized Steel Wires |
| Fire Resistance | IEC 60331 |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
This cable is designed and manufactured to meet key international standards for fire safety and marine applications:
-
IEC 60092-350, 353: Electrical installations in ships – Design.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60331: Tests for fire resistant characteristics.
-
IEC 60332-1 & -3-22: Tests for flame retardancy.
Typical Applications
-
Marine & Offshore: Critical emergency and power circuits in exposed, high-risk areas on ships, docks, and offshore platforms, such as engine rooms, open decks, and escape routes. Essential for circuits powering fire pumps, emergency lighting, and shutdown systems where both fire resistance and extreme mechanical protection are required.
-
Heavy Industrial & Infrastructure: Power supply for life-safety and critical control systems in mining, tunnels, power generation plants, and heavy industrial facilities where cables are subject to severe mechanical abuse and must maintain circuit integrity during a fire event.
