Product Overview
The CJVP82/NA is a robust, double-sheathed fire resistant marine cable designed to provide enhanced mechanical protection and environmental sealing for critical circuits that must maintain operation during a fire. It integrates a Mica Glass Tape + XLPE composite insulation system (IEC 60331) with a dual-layer PVC sheath and a flexible tinned copper wire braid armor. This construction offers a cost-effective and durable solution, ensuring circuit integrity for emergency systems while providing superior resistance to abrasion, impact, and moisture in demanding marine and industrial environments where standard sheath materials are suitable.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): Guarantees that essential safety circuits (e.g., emergency lighting, fire alarms, pump controls) remain functional for a specified period under direct flame exposure, which is crucial for life safety and emergency response.
-
Enhanced Mechanical Protection: Features both an inner and outer sheath made of Polyvinyl Chloride (PVC), offering superior resistance to abrasion, crushing, oils, and harsh environmental conditions compared to single-sheathed designs.
-
Flexible & Corrosion-Resistant Armor: The braided armor of tinned copper wires provides excellent flexibility for easier installation and routing, along with reliable corrosion resistance in humid and saline atmospheres.
-
Fire-Survival Core Construction: The Mica Glass Tape layer over XLPE insulation forms a robust, heat-resistant barrier that maintains electrical insulation integrity at extreme temperatures, preventing circuit failure during a fire.
-
Cost-Effective Reliability: Utilizes proven PVC sheathing materials, delivering durable protection and fire-resistant performance at a competitive price point for applications not requiring halogen-free specifications.

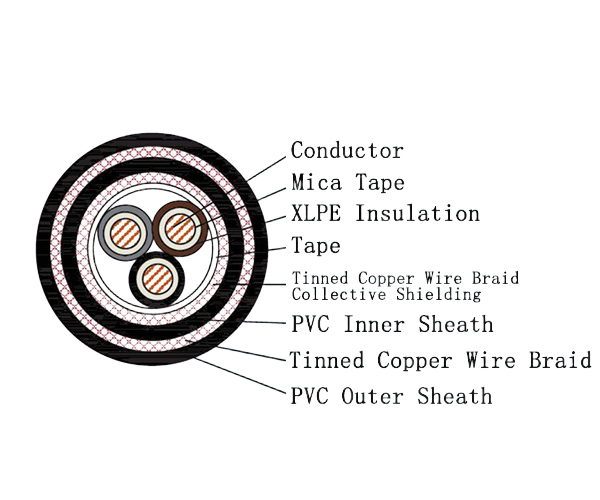

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Screen | P | Collective Copper Screen |
| Armour | 8 | Braid of Tinned or Plain Copper Wires |
| Outer Sheath | 2 | Polyvinyl Chloride (PVC) Outer Sheath |
| Flammability Class | NA | Fire Resistant |
| Sheath Colour | / | Standard Black (Other colours on request) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Mica Glass Tape + Cross-Linked Polyethylene (XLPE) |
| Inner & Outer Sheath | Polyvinyl Chloride (PVC) |
| Screen | Collective Copper Screen |
| Armour | Braided Tinned/Plain Copper Wires |
| Fire Resistance | IEC 60331 |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
This cable is designed and manufactured in compliance with the following international standards:
-
IEC 60092-350, 353: Electrical installations in ships – Design.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60331: Tests for fire resistant characteristics.
-
IEC 60332-1 & -3-22: Tests for flame retardancy.
Typical Applications
-
Marine & Offshore: Critical emergency and power circuits on ships, workboats, and offshore installations where enhanced mechanical protection from double sheathing is beneficial, and circuit integrity during fire is required, but halogen-free materials are not specified.
-
Industrial & Infrastructure: Power supply for essential safety systems, backup generators, and control circuits in industrial plants, power stations, and large facilities where cables may be exposed to physical wear and require fire-resistant performance with robust external protection.
