Product Overview
The CJPFP80/NC is a premium Fire Resistant (FR) marine power cable engineered to maintain circuit integrity during fire emergencies. It features a critical Mica Glass Tape + XLPE composite insulation system that provides exceptional resistance to fire and high temperatures. Combined with a Halogen-Free (LSZH) inner sheath, collective copper screen, and flexible tinned copper braid armor, this cable ensures not only enhanced fire safety with low smoke and zero halogen emission but also reliable EMI protection and mechanical durability. It is the definitive choice for powering essential and safety-critical systems in high-risk environments.
Key Features & Benefits
-
Certified Fire Resistance: Complies with IEC 60331, ensuring the cable can continue to operate for a specified period under direct flame exposure, which is vital for emergency lighting, alarm, and shutdown circuits.
-
Enhanced Fire Survival Insulation: The core utilizes a Mica Glass Tape layer over XLPE insulation, creating a robust barrier that withstands intense heat and prevents short-circuiting during a fire.
-
Superior Fire Safety Characteristics: Meets IEC 60754 (Halogen Free) and IEC 61034 (Low Smoke), drastically reducing corrosive gas emission and smoke density to aid safe evacuation and protect equipment.
-
Flexible & Corrosion-Resistant Armor: Braided armor of tinned copper wires offers excellent flexibility for installation and reliable earth continuity, with inherent corrosion resistance for marine use.
-
Comprehensive Protection: Combines fire resistance (NC), flame retardancy (IEC 60332), EMI shielding, and mechanical armor in a single, high-performance cable.

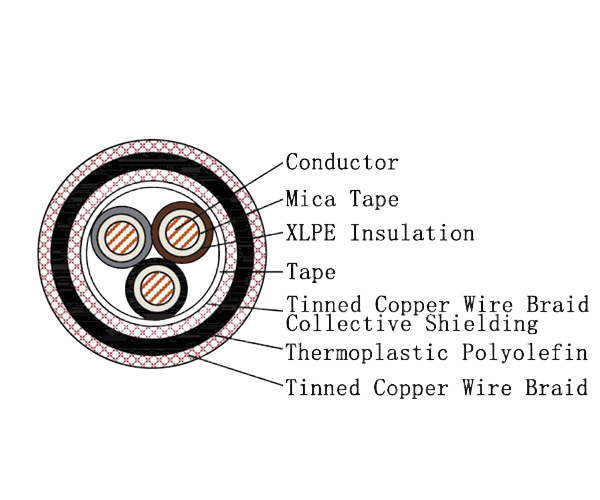

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) - Halogen Free, Low Smoke |
| Screen | P | Collective Copper Screen |
| Armour | 8 | Braid of Tinned or Plain Copper Wires |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability Class | NC | Halogen Free, Low Smoke, Fire Resistant |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Mica Glass Tape + Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | Thermoplastic Polyolefin (SHF1) |
| Screen | Collective Copper Screen |
| Armour | Braided Tinned/Plain Copper Wires |
| Fire Resistance | IEC 60331 |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 |
| Halogen & Smoke Performance | IEC 60754-1 & IEC 61034-2 |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
Manufactured to meet the highest international standards for safety and performance:
-
IEC 60092-350, 353: Electrical installations in ships.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60331: Test for fire resistant characteristics.
-
IEC 60332-1 & -3-22: Tests for flame retardancy.
-
IEC 60754-1: Test on gases evolved during combustion (Halogen Free).
-
IEC 61034: Measurement of smoke density (Low Smoke).
Typical Applications
-
Marine & Offshore: Essential safety circuits including emergency lighting, fire pump power, alarm systems, and shutdown controls on passenger ships, tankers, and offshore oil & gas platforms where circuit integrity during fire is mandatory.
-
Critical Infrastructure & Industry: Power supply for life safety and critical operational systems in public buildings, tunnels, nuclear/thermal power plants, petrochemical facilities, and mining operations where continuous power supply under fire conditions is required.
