Product Overview
The CJPFP86/SC is a high-performance, double-sheathed marine power cable engineered for maximum durability and safety in the most demanding environments. Designed for fixed installations, it features XLPE insulation and dual layers of halogen-free, flame-retardant thermoplastic polyolefin (SHF1) sheathing. This robust construction provides superior mechanical protection, exceptional resistance to oils and chemicals, and enhanced fire safety through low smoke and zero halogen emission. Combined with its collective copper screen and braided armor, it ensures reliable power distribution with excellent EMI protection for critical marine and industrial applications.
Key Features & Benefits
-
Dual-Sheath Protection: Unique construction with both an inner and a robust outer sheath made of Thermoplastic Polyolefin (SHF1), offering unmatched resistance to abrasion, impact, and harsh environmental conditions.
-
Superior Fire Safety: Fully halogen-free (LSZH) materials prevent the emission of corrosive/toxic gases and significantly reduce smoke density in case of fire, safeguarding personnel and equipment.
-
Reliable Electrical Performance: XLPE (Cross-Linked Polyethylene) insulation ensures stable operation at temperatures up to 90°C, with high dielectric strength and long-term aging resistance.
-
Effective EMI Shielding: Integrated collective copper screen minimizes electromagnetic interference, protecting signal integrity for sensitive power and control systems.
-
Robust Mechanical Armor: A braided armor layer of tinned copper wires provides added tensile strength, crush resistance, and acts as a reliable earth continuity conductor.

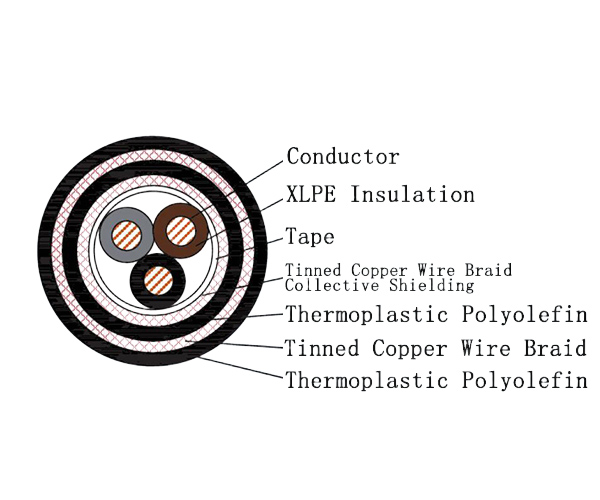

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Collective Copper Screen |
| Armour | 8 | Braid of Tinned or Plain Copper Wires |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) - Halogen Free, Low Smoke |
| Flammability Class | SC | Halogen Free, Low Smoke, Flame Retardant |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Cross-Linked Polyethylene (XLPE) |
| Inner/Outer Sheath | Thermoplastic Polyolefin (SHF1) |
| Screen | Collective Copper Screen |
| Armour | Braided Tinned/Plain Copper Wires |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
| Standard Sheath Colour | Black (Other colours available on request) |
Standards & Approvals
This cable is designed and manufactured in full compliance with the following international marine standards:
-
IEC 60092-350, 353: Electrical installations in ships – General construction and test methods.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials for shipboard power, control, and instrumentation cables.
-
IEC 60332-1: Test for vertical flame propagation for a single insulated wire/cable.
-
IEC 60332-3-22: Test for vertical flame spread of bunched cables – Category A.
Typical Applications
-
Marine & Offshore: Primary and auxiliary power distribution, lighting, and essential control circuits on ships, tankers, ferries, and offshore oil & gas platforms requiring extra mechanical protection.
-
Industrial: Robust power supply lines in harsh and high-risk areas of chemical plants, metallurgy facilities, power stations, and mining operations where enhanced fire safety and cable durability are critical.
