CJV90/SA XLPE Insulated Armored Marine Power Cable
Product Overview
The CJV90/SA is a flame-retardant marine power cable featuring robust galvanized steel wire braid armor. Designed for fixed installations in harsh environments, it provides reliable power, lighting, and control circuit connections for offshore structures (such as oil platforms) and demanding industrial applications including metallurgy, chemical plants, power generation, and mining.
Key Features
-
Galvanized Steel Wire Armor: Offers superior mechanical protection against crushing, impact, and rodent damage.
-
XLPE Insulation: Provides excellent thermal stability (rated up to 90°C) and high dielectric strength.
-
Flame Retardant: Complies with IEC 60332-1 and IEC 60332-3-22 standards for enhanced fire safety.
-
Compact Design: No outer sheath over the armor, suitable for installations where space or weight is a consideration.
-
Wide Configuration Range: Available in conductor sizes from 0.75 mm² to 300 mm², with 1 to 37 cores.

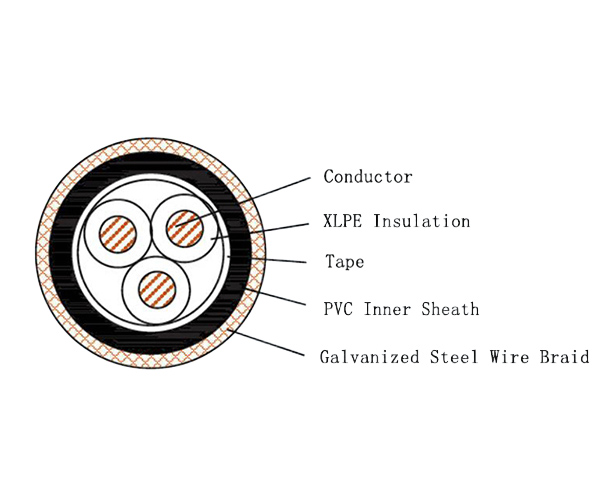

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE Insulated |
| Inner Sheath | V | PVC |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Continuous Operating Temperature: 90°C
-
Conductor Cross-Sectional Area Range: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
Applicable Standards
-
IEC 60092-350, 353 – Design
-
IEC 60228 – Conductors
-
IEC 60092-360 – Insulation and Sheath
-
IEC 60332-1 – Test for vertical flame propagation for a single insulated wire/cable
-
IEC 60332-3-22 – Test for vertical flame spread of bunched cables (Category A)
Typical Applications
-
Offshore oil & gas platforms and rigs
-
Shipboard machinery spaces and fixed wiring
-
Industrial plants with high risk of mechanical damage
-
Mining operations and heavy industrial control systems
