CJV82/SA XLPE Insulated Armored Marine Power Cable
Product Overview
The CJV82/SA is a flame-retardant, armored marine power cable with a protective PVC outer sheath. Designed for demanding environments, it provides reliable performance for power, lighting, and control systems on offshore installations (such as oil platforms) and in heavy industries including metallurgy, chemical plants, power generation, and mining.
Key Features
-
Dual Protective Sheathing: Features an inner PVC sheath and a robust PVC outer sheath for enhanced mechanical and environmental protection.
-
XLPE Insulation: Offers superior thermal resistance (up to 90°C) and excellent electrical properties.
-
Flame Retardant: Complies with IEC 60332-1 and IEC 60332-3-22 for fire safety in single and bunched installation scenarios.
-
Braided Copper Armor: Provides effective mechanical protection and serves as a reliable grounding path.
-
Wide Configuration Range: Available in conductor sizes from 0.75 mm² to 300 mm², with 1 to 37 cores.

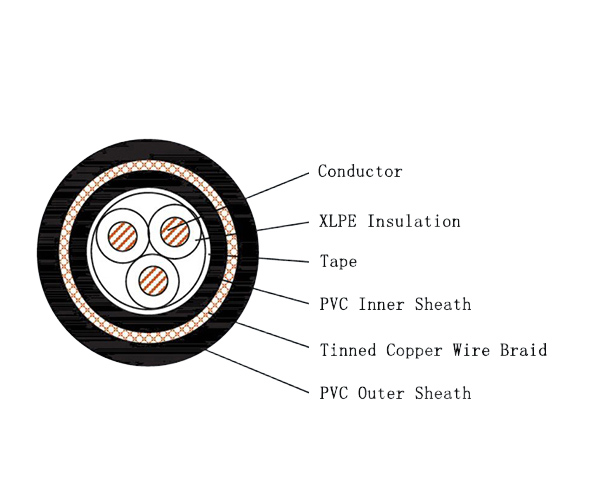

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE Insulated |
| Inner Sheath | V | PVC |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 2 | PVC Outer Sheath |
| Outer Sheath Color | / | Black or other Color |
| Flammability | SA | Bunched Cables Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Continuous Operating Temperature: 90°C
-
Conductor Cross-Sectional Area Range: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
Applicable Standards
-
IEC 60092-350, 353 – Design
-
IEC 60228 – Conductors
-
IEC 60092-360 – Insulation and Sheath
-
IEC 60332-1 – Test for vertical flame propagation for a single insulated wire/cable
-
IEC 60332-3-22 – Test for vertical flame spread of bunched cables (Category A)
Typical Applications
-
Offshore oil & gas platforms and rigs
-
Shipboard and marine vessel electrical systems
-
Coastal infrastructure and harbors
-
Industrial plants with harsh or corrosive conditions (chemical, mining, power)
