CJV80/SA XLPE Insulated Armored Marine Power Cable
Product Overview
The CJV80/SA is a flame-retardant, armored marine power cable designed for reliable power, lighting, and control circuits in harsh offshore and onshore environments. It is widely used in oil platforms, marine structures, and industrial sectors such as metallurgy, chemical plants, power generation, and mining.
Key Features
-
XLPE Insulation – Provides excellent thermal stability and electrical performance.
-
Flame Retardant – Meets IEC 60332-1 and IEC 60332-3-22 for enhanced fire safety.
-
Copper Wire Braided Armor – Offers mechanical protection and grounding continuity.
-
Wide Range – Available in conductor sizes from 0.75 mm² to 300 mm², with 1 to 37 cores.

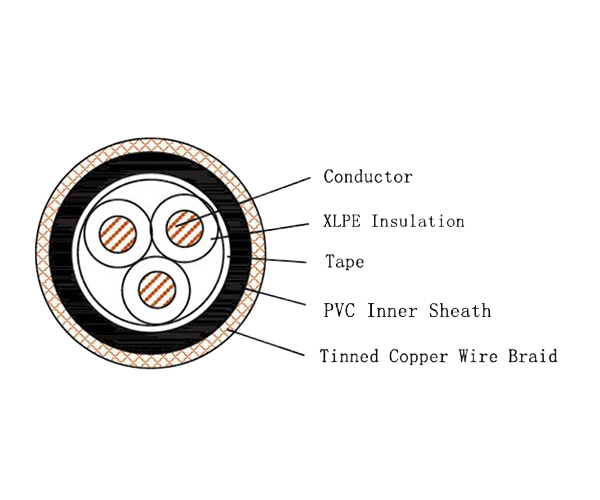

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | – | Tinned/plain stranded annealed copper wire |
| Insulation | J | XLPE (Cross-linked polyethylene) |
| Inner Sheath | V | PVC |
| Armor | 8 | Tinned/plain copper wire braided |
| Outer Sheath | 0 | Without outer sheath |
| Flammability | SA | Bunched cables flame retardant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Operating Temperature: 90°C
-
Conductor Cross Section: 0.75 mm² to 300 mm²
-
Core Count: 1 to 37 cores
Applicable Standards
-
IEC 60092-350, 353 – Design
-
IEC 60228 – Conductor
-
IEC 60092-360 – Insulation and sheath
-
IEC 60332-1 – Flame retardant (single cable)
-
IEC 60332-3-22 – Flame retardant (bundled cables)
Typical Applications
-
Offshore oil & gas platforms
-
Shipboard power and lighting systems
-
Coastal and marine infrastructure
-
Hazardous industrial plants (chemical, power, mining)
