Product Overview
The CJPF90/SC XLPE Insulated Armored Marine Power Cable is engineered for demanding applications that require robust mechanical protection alongside enhanced fire safety features. It utilizes XLPE insulation for high electrical integrity and thermal resistance, a low-smoke, zero-halogen (LSZH) thermoplastic polyolefin (SHF1) inner sheath, and is armored with a heavy-duty galvanized steel wire braid. This design provides reliable flame retardancy (IEC 60332), minimizes hazardous smoke and gas emissions, and offers superior protection against impact, crushing, and corrosion.
Key Applications
-
Marine & Offshore: Suitable for power, lighting, and control systems in high-risk or exposed areas of ships, oil platforms, and offshore structures such as engine rooms, decks, and cargo holds where mechanical durability and cleaner fire performance are required.
-
Heavy-Duty Industrial: Applicable in metallurgy, mining, power plants, and industrial facilities where cables are subject to physical stress and the environment benefits from reduced smoke and acid gas emission in case of fire.
Compliance & Standards
This cable is designed and manufactured to meet international marine and safety standards:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22

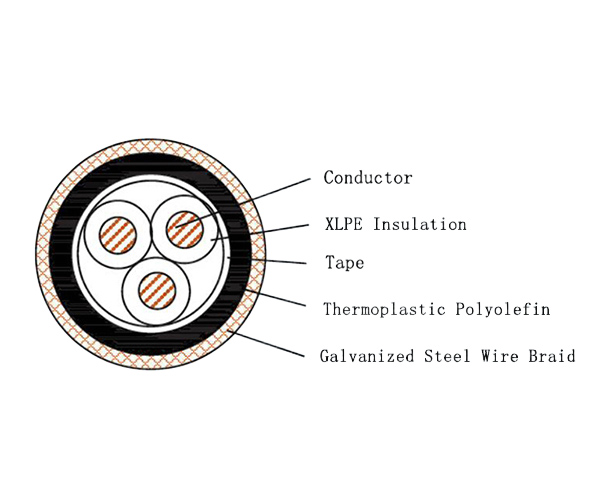

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1 - Low Smoke Halogen Free) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | None (Steel Armor serves as the final layer) |
| Flammability | SC | Halogen Free, Low Smoke, Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
