Product Overview
The CJPF86/SC XLPE Insulated Armored Marine Power Cable is a fully-sheathed, enhanced safety cable designed for applications demanding superior environmental and fire-hazard protection. It features XLPE insulation for robust electrical performance, combined with a double-layer, low-smoke zero-halogen (LSZH) thermoplastic polyolefin (SHF1) sheath system. This dual-sheath design, along with tinned copper wire braid armor, provides exceptional flame retardancy (IEC 60332), maximizes defense against moisture and chemicals, and minimizes smoke and corrosive gas emission in the event of a fire.
Key Applications
-
Marine & Offshore: Ideal for power, lighting, and control circuits in areas of ships, oil platforms, and offshore modules where enhanced environmental sealing and clean fire performance are required, such as in accommodation blocks or control rooms with stricter safety protocols.
-
Demanding Industrial & Infrastructure: Suitable for power generation, chemical processing plants, and public/commercial buildings where circuits require reliable LSZH flame-retardant performance with added protection against abrasion, oils, and damp environments.
Compliance & Standards
This cable is manufactured in accordance with key international marine and safety standards:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22

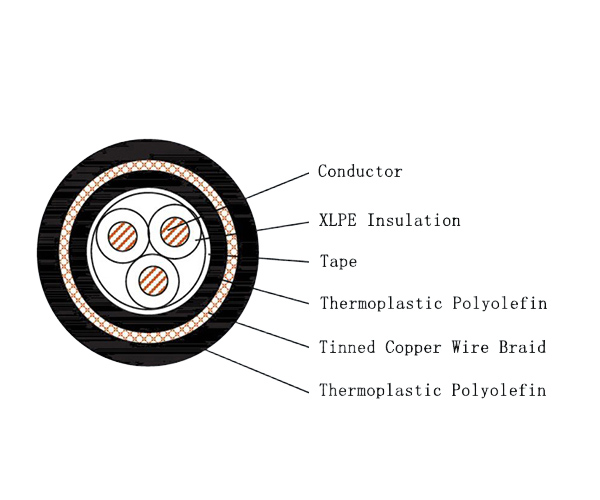

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1 - LSZH) |
| Armor | 8 | Tinned or Plain Copper Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1 - LSZH) |
| Outer Sheath Color | / | Standard Black (Other colors available) |
| Flammability | SC | Halogen Free, Low Smoke, Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
