Product Overview
The CJPF96/SC XLPE Insulated Armored Marine Power Cable is a premium, fully-sheathed safety cable designed for the most challenging installations where environmental sealing, fire safety, and mechanical robustness are critical. It combines XLPE insulation for superior electrical performance with a dual-layer, low-smoke zero-halogen (LSZH) thermoplastic polyolefin (SHF1) sheath system and heavy-duty galvanized steel wire braid armor. This construction delivers exceptional flame retardancy (IEC 60332), complete protection against moisture, oils, and abrasion, and ensures minimal emission of smoke and corrosive gases.
Key Applications
-
Marine & Offshore: Ideal for power, lighting, and control systems in exposed, wet, or chemically aggressive areas of ships, oil platforms, and offshore structures, such as open decks, machinery spaces, and ballast tanks.
-
Critical & Corrosive Industrial Environments: Suited for power plants, chemical processing facilities, mining operations, and infrastructure projects where cables require maximum durability, environmental resistance, and clean fire performance.
Compliance & Standards
This cable is designed and tested in accordance with key international marine and safety standards:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22

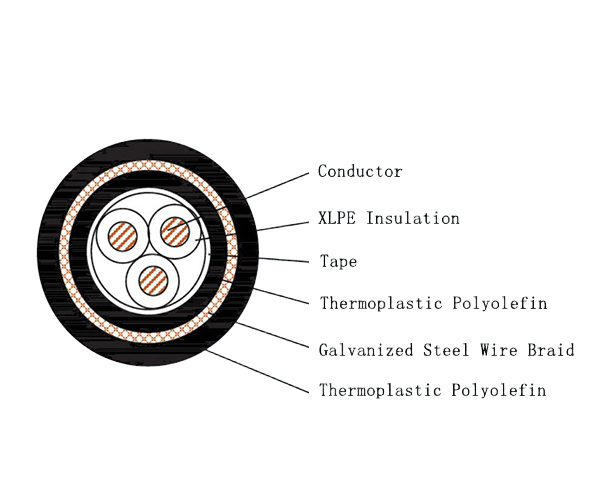

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1 - LSZH) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1 - LSZH) |
| Outer Sheath Color | / | Standard Black (Other colors available) |
| Flammability | SC | Halogen Free, Low Smoke, Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
