Product Overview
The CJPF80/SC XLPE Insulated Armored Marine Power Cable is a high-performance cable designed for safety-conscious power and control circuits. It features XLPE (Cross-linked Polyethylene) insulation for excellent electrical and thermal properties, combined with an inner sheath of low-smoke, zero-halogen (LSZH) thermoplastic polyolefin (SHF1) and a tinned copper wire braid armor. This construction provides reliable flame retardancy (IEC 60332), minimizes hazardous emissions in case of fire, and offers flexible mechanical protection.
Key Applications
-
Marine & Offshore: Suitable for power, lighting, and control systems in accommodation areas, control rooms, and corridors of ships, oil platforms, and offshore structures where reduced smoke and corrosive gas emission is beneficial.
-
General Industrial: Applicable in metallurgy, chemical plants, power stations, and mining for circuits requiring flame-retardant, low-smoke, and halogen-free performance in fixed installations.
Compliance & Standards
This cable is designed and tested according to relevant international marine and safety standards:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22

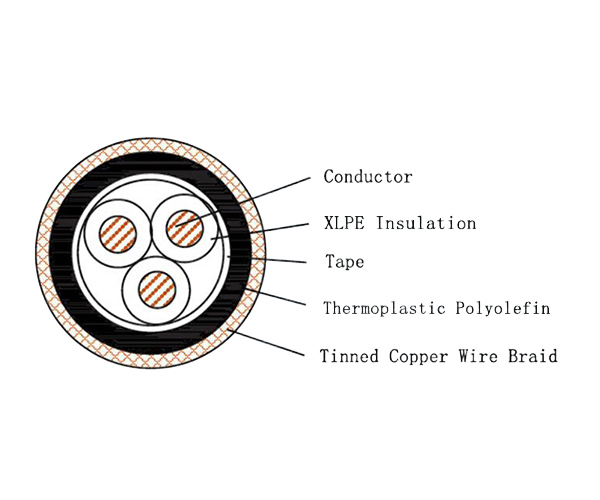

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1 - Low Smoke Halogen Free) |
| Armor | 8 | Tinned or Plain Copper Wire Braid |
| Outer Sheath | 0 | None (Armor serves as the final layer) |
| Flammability | SC | Halogen Free, Low Smoke, Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
