Product Overview
The CEV/NA EPR Insulated Marine Power Cable is a non-armored, fire-resistant (IEC 60331) cable designed for critical safety circuits where flexibility and fire integrity are key, and additional mechanical armor is not required. Its core is insulated with mica glass tape and EPR to maintain circuit continuity during fire, all protected by a durable PVC outer sheath. This construction is ideal for protected installations demanding reliable fire survival performance.
Key Applications
-
Marine & Offshore: Ideal for emergency lighting, alarm systems, and control circuits routed within protected cable trays, conduits, or trunking in accommodation areas, control rooms, and bridge systems on ships and offshore platforms.
-
Industrial Safety: Suitable for fire-resistant power and control circuits in power plants, chemical facilities, and other industrial settings where cables are installed in controlled environments not subject to direct mechanical impact.
Compliance & Standards
This cable is designed and tested in accordance with key international safety standards:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22

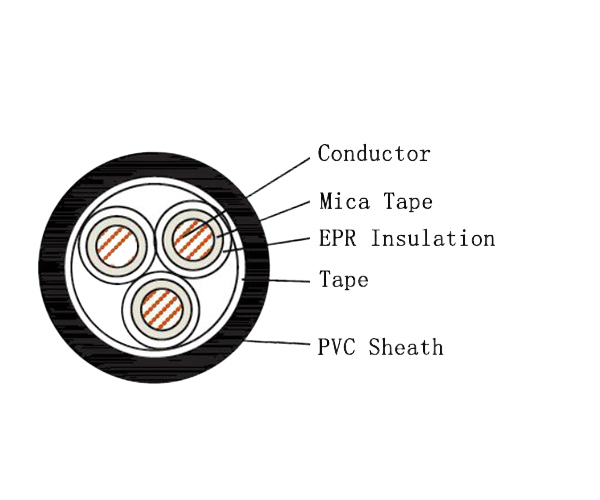

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Fire-Resistant Layer) |
| Sheath | V | PVC |
| Sheath Color | / | Standard Black (Other colors available) |
| Flammability | NA | Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
