CEPF90/NC 0.6/1kV Marine Cable | Low Smoke Halogen Free, Fire Resistant, Steel Wire Armor

IEC 60092-Series Cables HEPR/EPR Insulation Marine Shipboard Power Cables
Description

Product Overview

The CEPF90/NC EPR Insulated Armored Marine Power Cable is engineered to provide maximum safety in high-risk, confined environments. It combines three critical safety features: fire resistance (IEC 60331) to maintain circuit integrity, low-smoke and zero-halogen (LSZH) properties to minimize hazardous emissions, and robust galvanized steel wire braid armor for superior mechanical protection. With its mica/EPR insulation and SHF1 polyolefin inner sheath, it is designed for the most demanding safety-critical installations where failure is not an option.

Key Applications

  • Marine & Offshore: Vital for emergency power, lighting, and control circuits in engine rooms, pump rooms, evacuation routes, and accommodation areas of ships, oil platforms, and offshore structures, where fire integrity, personnel safety, and mechanical durability are crucial.

  • High-Safety Industrial & Public Infrastructure: Essential for power plants, chemical facilities, tunnels, metro systems, and public buildings where circuits must remain operational during a fire, ensure a safer escape environment, and withstand harsh physical conditions.

Compliance & Standards

This cable is certified to a comprehensive suite of international safety standards:

  • Design: IEC 60092-350, IEC 60092-353

  • Conductor: IEC 60228

  • Insulation & Sheath: IEC 60092-360

  • Fire Resistance: IEC 60331

  • Flame Retardancy: IEC 60332-1, IEC 60332-3-22

  • Halogen Free: IEC 60754

  • Low Smoke Density: IEC 61034

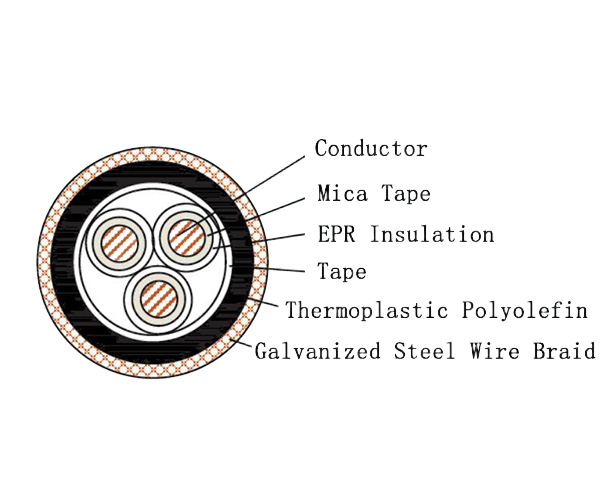

Construction & Materials

Item Code Material / Description
Series Code C Marine Power Cable
Conductor / Tinned or Plain Stranded, Annealed Copper Wire
Insulation E Mica Glass Tape + EPR (Fire-Resistant Layer)
Inner Sheath PF Thermoplastic Polyolefin (SHF1 - Low Smoke Halogen Free)
Armor 9 Galvanized Steel Wire Braid
Outer Sheath 0 None (Steel Wire Armor serves as the final layer)
Flammability NC Halogen Free, Low Smoke, Fire Resistant

Technical Specifications

  • Rated Voltage: 0.6/1 kV

  • Maximum Conductor Temperature: 90°C

  • Available Cross-Section: 0.75 mm² to 300 mm²

  • Number of Cores: 1 to 37 Cores
