Product Overview
The CEPF86/NC EPR Insulated Armored Marine Power Cable is a fully-sheathed, high-safety cable offering the ultimate protection for personnel and critical circuits. It integrates fire resistance (IEC 60331) with superior low-smoke, zero-halogen (LSZH) performance. Its unique construction features a mica/EPR insulated core, an inner SHF1 polyolefin sheath, tinned copper wire braid armor, and a final SHF1 polyolefin outer sheath, providing complete circuit integrity during fire, exceptional mechanical protection, and minimal emission of smoke and corrosive gases.
Key Applications
-
Marine & Offshore: Essential for emergency and safety-critical systems (power, lighting, controls) in confined or evacuation areas of ships, oil rigs, and offshore platforms, where fire survival and clean combustion are mandatory.
-
Public & Industrial Safety: Ideal for tunnels, metro systems, power plants, chemical facilities, and high-occupancy buildings where circuits must remain operational in fire conditions while ensuring a safer escape environment.
Compliance & Standards
This cable is manufactured to meet the highest international standards for fire safety and environmental impact:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Density: IEC 61034

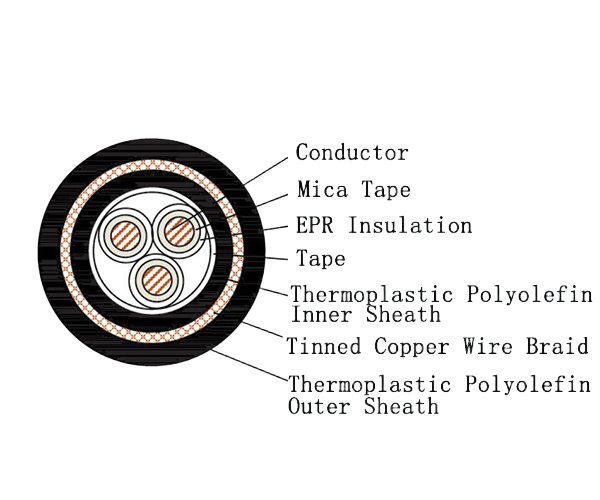

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Fire-Resistant Layer) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1 - LSZH) |
| Armor | 8 | Tinned or Plain Copper Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1 - LSZH) |
| Outer Sheath Color | / | Standard Black (Other colors available) |
| Flammability | NC | Halogen Free, Low Smoke, Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
