Product Overview
The CHEPF90/NC is a specialized Fire Resistant (IEC 60331) marine communication cable engineered for critical circuits where maintaining operational integrity during a fire emergency is paramount. It combines Mica/EPR insulation for fire resistance with Low Smoke Halogen Free (LSHF) safety properties. Featuring a robust Galvanized Steel Wire Braid armor and designed to IEC 60092 standards, this cable is ideal for essential telecommunication and control systems in high-risk marine, offshore, and industrial environments.
Key Features & Benefits
-
Certified Fire Resistance: Meets IEC 60331 standards, ensuring circuit integrity continues to function for a specified period under direct fire conditions.
-
Comprehensive Safety: Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties reduce toxic/corrosive fumes and smoke density, enhancing evacuation and safety. Also provides Flame Retardant (IEC 60332) performance.
-
Robust Construction: Mica glass tape with EPR insulation provides a proven fire-resistant barrier. The Galvanized Steel Wire Braid armor (Code 9) offers excellent mechanical protection.
-
Marine & Industrial Grade: Designed for the harsh conditions of ships, oil platforms, and demanding industrial settings like power plants and chemical processing facilities.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

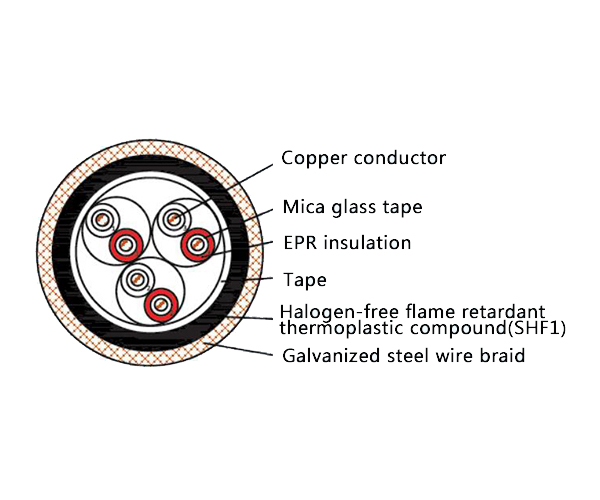

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + Ethylene Propylene Rubber (EPR) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is designed for critical safety and operational circuits, including:
-
Emergency telecommunication, alarm, instrumentation, and control systems on marine vessels and offshore constructions (e.g., oil & gas platforms).
-
Essential communication networks in hazardous industrial plants such as power generation, chemical processing, metallurgy, and mining.
