Product Overview
The CEPF80/NC EPR Insulated Armored Marine Power Cable is an advanced safety cable engineered for the highest level of personnel and equipment protection. It uniquely combines fire resistance (IEC 60331) with low-smoke, zero-halogen (IEC 60754, IEC 61034) properties. Featuring a mica glass tape and EPR insulated core, a low-smoke halogen-free (SHF1) polyolefin inner sheath, and tinned copper wire braid armor, it ensures circuit integrity during fire while minimizing the release of toxic smoke and corrosive gases.
Key Applications
-
Marine & Offshore: Critical for emergency power, lighting, and control systems in confined spaces of ships, oil platforms, and offshore modules, where fire integrity and personnel evacuation safety are paramount.
-
Safety-Critical Industrial: Ideal for public buildings, transportation hubs, power plants, and industrial control rooms where circuits must remain operational during a fire and pose minimal hazard from smoke and acid gas emission.
Compliance & Standards
This cable is certified to the most comprehensive set of international safety standards:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Density: IEC 61034

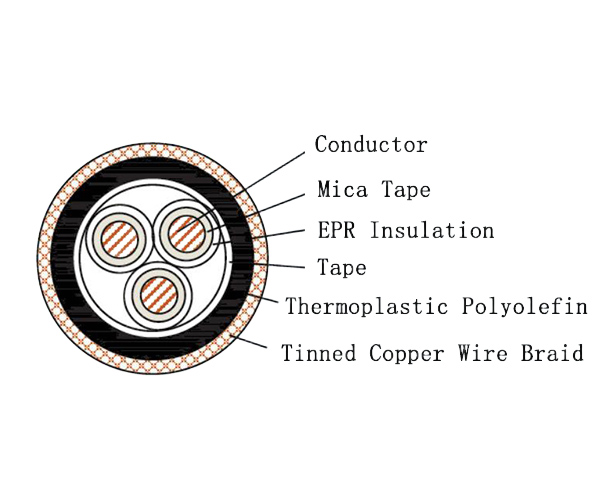

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Fire-Resistant Layer) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1 - Low Smoke Halogen Free) |
| Armor | 8 | Tinned or Plain Copper Wire Braid |
| Outer Sheath | 0 | None (Armor serves as the final layer) |
| Flammability | NC | Halogen Free, Low Smoke, Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
