CEPF/SC EPR Insulated Low-Smoke Halogen-Free Marine Power Cable
Product Overview
CEPF/SC marine power cable combines EPR insulation with a low-smoke halogen-free (LSZH) SHF1 outer sheath, providing enhanced fire safety and environmental protection for marine and offshore installations where toxic fumes and corrosion must be minimized.
Key Applications
-
Power, lighting and control systems for offshore structures and ships
-
Oil platforms and marine vessels, especially in enclosed spaces
-
Areas requiring strict compliance with low smoke and halogen-free standards
-
Metallurgy, chemical plants, power generation, and mining industries
Compliance & Standards
This cable is designed and tested in accordance with the following international standards:
-
IEC 60092-350, 353 - Marine cable design
-
IEC 60228 - Conductors
-
IEC 60092-360 - Insulation and sheath
-
IEC 60332-1 - Flame retardant (single cable)
-
IEC 60332-3-22 - Flame retardant (bunched cables)

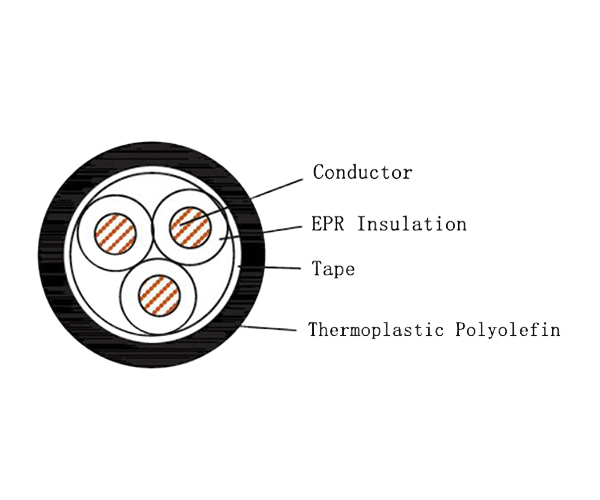

Cable Construction & Coding
| Component | Code | Material/Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR Insulated |
| Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Outer Sheath Color | / | Black or other Color |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1kV
-
Working Temperature: 90℃
-
Cross Section Range: 0.75mm² to 300mm²
-
Number of Cores: 1 to 37 cores
-
Insulation Material: EPR (Ethylene Propylene Rubber)
-
Sheath Material: Thermoplastic Polyolefin (SHF1)
-
Flame Retardancy: Compliant with IEC 60332-1 & IEC 60332-3-22
-
Key Safety Feature: Halogen Free Low Smoke Flame Retardant
