Product Overview
The CKJPF86/NC XLPE Insulated Low Smoke Halogen Free Fire Resistant Marine Control Cable is engineered for critical power, lighting, and control systems in demanding marine and industrial environments. With comprehensive certification to international marine standards, this cable provides exceptional fire safety performance through its low smoke emission, halogen-free construction, and superior fire resistance - making it ideal for offshore platforms and other safety-critical applications.
Key Specifications
-
Rated Voltage: 150/250V
-
Working Temperature: 90°C
-
Cross Sections: 0.5mm², 0.75mm², 1mm², 1.5mm², 2.5mm²
-
Number of Cores: 1-37 Cores
-
Standards: IEC 60092-350, 376, IEC 60228, IEC 60092-360
Key Features & Benefits
-
Enhanced Fire Safety: Complies with IEC 60331 fire resistance standards
-
Low Smoke & Halogen Free: Meets IEC 61034 low smoke and IEC 60754 halogen-free requirements
-
Marine Certified: Designed and tested according to IEC 60092 series for marine applications
-
Flame Retardant: Certified to IEC 60332-1 and IEC 60332-3-22 flame retardancy standards
-
Robust Construction: XLPE insulation with mica glass tape and copper wire braided armor
-
Versatile Application: Suitable for offshore platforms and harsh industrial environments
Applications
-
Power, lighting and control systems of offshore and offshore buildings
-
Oil platforms and marine installations
-
Metallurgy, chemical industry, power plant and mining industry
-
Applications requiring low smoke, halogen-free and fire resistant cables

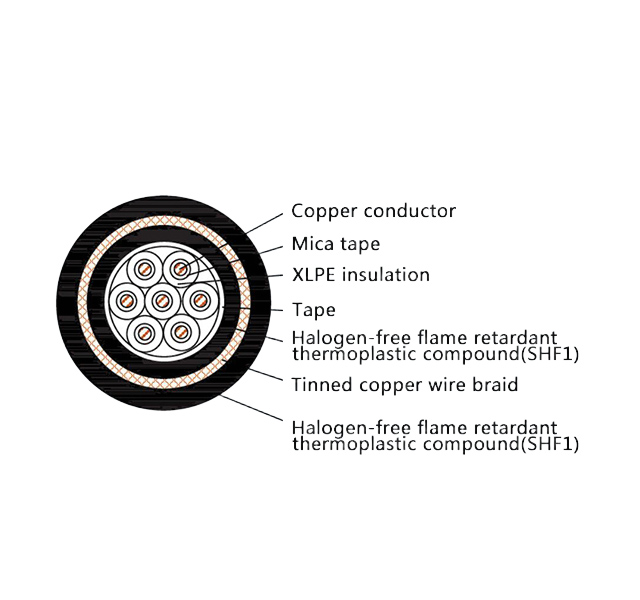

Construction Details
| Component | Code | Material/Description |
|---|---|---|
| Series Code | CK | Marine & offshore control cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica glass tape + XLPE insulation |
| Inner Sheath | PF | Halogen-free Flame Retardant thermoplatic compound (SHF1) |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 6 | Halogen-free Flame Retardant thermoplatic compound (SHF1) |
| Outer Sheath Color | / | Black or other Color |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards Compliance
-
Design: IEC 60092-350, 376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke: IEC 61034
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Working Temperature | 90°C |
| Available Cross Sections | 0.5mm², 0.75mm², 1mm², 1.5mm², 2.5mm² |
| Number of Cores | 1-37 Cores |
| Fire Performance | Fire Resistant, Low Smoke, Halogen Free |
| Flame Retardancy | Category A (IEC 60332-3-22) |
Disclaimer: All technical specifications are based on standard manufacturing specifications and comply with the referenced international standards. Products are subject to standard industry tolerances. Please consult our engineering team for specific application requirements.
