EPR Insulated AC Medium-voltage Submarine Cable | Offshore Power Transmission Cable

Submarine Cables6
Description

Product Overview

EPR Insulated AC Medium-voltage Submarine Cables are designed for reliable power transmission to offshore islands, oil platforms, and river/lake crossings. Featuring ethylene propylene rubber (EPR) insulation and robust galvanized steel wire armour, these cables deliver exceptional performance in demanding subaqueous environments while complying with major international standards including VDE, IEC, and ICEA.

Applications

  • Power transmission to offshore islands

  • Oil and gas platform power supply

  • River and lake crossings

  • Submarine power distribution networks

  • Offshore renewable energy connections

  • Underwater medium-voltage power transmission

Construction

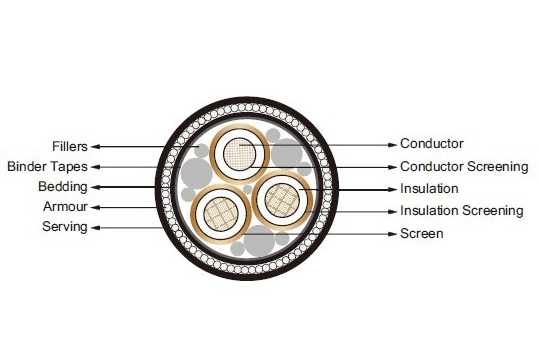

EPR Insulated AC Medium-voltage Submarine Cable | Offshore Power Transmission Cable

  • Conductor: Copper conductor, circular stranded compacted, water blocked

  • Conductor Screening: Extruded semi-conductive compound

  • Insulation: EPR (Ethylene Propylene Rubber)

  • Insulation Screening: Extruded semi-conductive compound

  • Screen: Copper tapes

  • Fillers: Polypropylene filler

  • Separator: Binder tapes

  • Bedding Layer: Polypropylene strings

  • Armour: Galvanized steel wires

  • Serving: Hessian tapes, bituminous compound, polypropylene strings

Electrical Data

6/10(12) kV

Cross Section (mm²) Capacitance (μF/km) Inductance (mH/km) Current Rating (A)
35 0.27 0.37 166
50 0.30 0.35 197
70 0.34 0.33 242
95 0.38 0.32 289
120 0.42 0.31 328
150 0.45 0.30 367
185 0.49 0.29 402
240 0.55 0.28 469

12/20(24) kV

Cross Section (mm²) Capacitance (μF/km) Inductance (mH/km) Current Rating (A)
35 0.19 0.41 166
50 0.21 0.39 197
70 0.24 0.37 241
95 0.26 0.35 288
120 0.29 0.34 327
150 0.31 0.33 365
185 0.33 0.32 409
240 0.37 0.31 470

18/30(36) kV

Cross Section (mm²) Capacitance (μF/km) Inductance (mH/km) Current Rating (A)
50 0.17 0.43 196
70 0.18 0.41 241
95 0.20 0.39 287
120 0.22 0.37 325
150 0.23 0.36 364
185 0.25 0.35 406
240 0.28 0.33 467

Dimensions and Weight

6/10(12) kV

Cross Section (mm²) Conductor Diameter (mm) Insulation Thickness (mm) Screen Area (mm²) Bedding Thickness (mm) Steel Wire Diameter (mm) Serving Thickness (mm) Overall Diameter (mm) Weight (kg/m)
35 7.0 3.4 3×4 2.0 3.15 3.5 56 5.4
50 8.2 3.4 3×4 2.0 3.15 3.5 59 5.9
70 9.9 3.4 3×5.4 2.0 4.0 3.5 64 7.9
95 11.5 3.4 3×5.4 2.0 4.0 3.5 68 9.1
120 13.0 3.4 3×5.4 2.0 4.0 3.5 71 10.2
150 14.5 3.4 3×6 2.0 4.0 3.5 74 11.4
185 16.1 3.4 3×6 2.5 5.0 4.0 86 15.0
240 18.6 3.4 3×6 2.5 5.0 4.0 87 16.7

12/20(24) kV

Cross Section (mm²) Conductor Diameter (mm) Insulation Thickness (mm) Screen Area (mm²) Bedding Thickness (mm) Steel Wire Diameter (mm) Serving Thickness (mm) Overall Diameter (mm) Weight (kg/m)
35 7.0 5.5 3×6 2.0 3.15 3.5 65 6.8
50 8.2 5.5 3×6 2.0 3.15 3.5 68 7.4
70 9.9 5.5 3×6 2.0 4.0 3.5 73 9.5
95 11.5 5.5 3×6 2.0 4.0 3.5 77 10.7
120 13.0 5.5 3×6 2.0 4.0 3.5 80 11.8
150 14.5 5.5 3×6 2.0 4.0 3.5 83 13.0
185 16.1 5.5 3×8 2.0 5.0 4.0 90 16.2
240 18.6 5.5 3×8 2.0 5.0 4.0 95 18.5

18/30(36) kV

Cross Section (mm²) Conductor Diameter (mm) Insulation Thickness (mm) Screen Area (mm²) Bedding Thickness (mm) Steel Wire Diameter (mm) Serving Thickness (mm) Overall Diameter (mm) Weight (kg/m)
50 8.2 8.0 3×6 2.0 3.15 3.5 79 9.2
70 9.9 8.0 3×6 2.0 4.0 3.5 84 11.5
95 11.5 8.0 3×8 2.0 4.0 3.5 88 12.8
120 13.0 8.0 3×8 2.0 4.0 3.5 91 14.0
150 14.5 8.0 3×8 2.0 4.0 3.5 94 15.4
185 16.1 8.0 3×10 2.0 5.0 4.0 101 18.7
240 18.6 8.0 3×10 2.0 5.0 4.0 106 21.1
