Lead Sheathed AC High-voltage Submarine Cable | XLPE Insulated Offshore Power Transmission Cable

Offshore Power Cable7
Description

Product Overview

Lead Sheathed AC High-voltage Submarine Cables are engineered for reliable power transmission to offshore islands, oil platforms, and river/lake crossings. Featuring XLPE insulation, lead sheath moisture barrier, and galvanized steel wire armour, these cables deliver robust performance in demanding subsea environments while complying with major international standards including VDE, IEC, and ICEA.

Applications

  • Power transmission to offshore islands

  • Oil and gas platform power supply

  • River and lake crossings

  • Submarine power distribution networks

  • Offshore renewable energy connections

  • Underwater power transmission systems

Construction

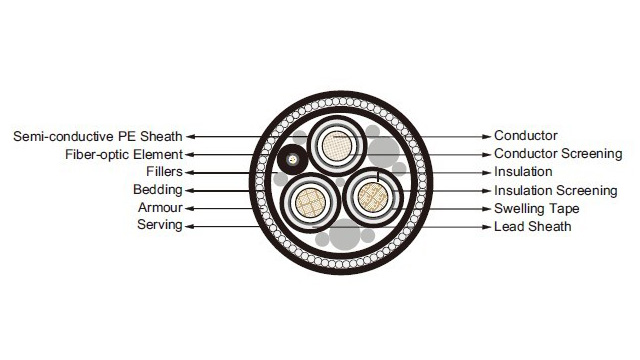

Lead Sheathed AC High-voltage Submarine Cable | XLPE Insulated Offshore Power Transmission Cable

  • Conductor: Copper conductor, water blocked

  • Conductor Screening: Extruded semi-conductive compound

  • Insulation: XLPE

  • Insulation Screening: Extruded semi-conductive compound

  • Separator: Swelling tape

  • Core Sheath 1: Lead Sheath

  • Core Sheath 2: Semi-conductive PE sheath

  • Fillers: Polypropylene filler

  • Fibre-optic Element: Fibre optic cable

  • Bedding: Bedding layer

  • Armour: Galvanized steel wires filled with bitumen compound

  • Serving: Polypropylene yarn

Electrical Data

26/45(52) kV

Cross Section (mm²) Capacitance (μF/km) Inductance (mH/km) Charging Current @50Hz (A/km)
95 0.18 0.43 1.5
120 0.19 0.42 1.6
150 0.21 0.40 1.6
185 0.22 0.39 1.8
240 0.24 0.37 2.0
300 0.26 0.36 2.2
400 0.29 0.35 2.3
500 0.32 0.33 2.6
630 0.35 0.32 2.9
800 0.38 0.31 3.1
1000 0.42 0.30 3.5

38/66(72.5) kV

Cross Section (mm²) Capacitance (μF/km) Inductance (mH/km) Charging Current @50Hz (A/km)
95 0.17 0.44 2.0
120 0.18 0.43 2.1
150 0.19 0.41 2.3
185 0.20 0.40 2.4
240 0.22 0.38 2.6
300 0.24 0.37 2.8
400 0.26 0.35 3.1
500 0.29 0.34 3.5
630 0.32 0.33 3.7
800 0.35 0.32 4.1
1000 0.38 0.31 4.6

64/110(123) kV

Cross Section (mm²) Capacitance (μF/km) Inductance (mH/km) Charging Current @50Hz (A/km)
185 0.14 0.46 2.8
240 0.15 0.43 3.0
300 0.17 0.41 3.5
400 0.20 0.38 3.9
500 0.22 0.37 4.3
630 0.24 0.36 4.7
800 0.26 0.34 5.2
1000 0.28 0.33 5.6

76/132(145) kV

Cross Section (mm²) Capacitance (μF/km) Inductance (mH/km) Charging Current @50Hz (A/km)
185 0.13 0.47 3.0
240 0.14 0.44 3.4
300 0.16 0.42 3.8
400 0.18 0.40 4.3
500 0.20 0.38 4.6
630 0.21 0.37 5.1
800 0.23 0.36 5.6
1000 0.25 0.35 6.1

87/150(170) kV

Cross Section (mm²) Capacitance (μF/km) Inductance (mH/km) Charging Current @50Hz (A/km)
240 0.13 0.47 3.4
300 0.14 0.44 3.7
400 0.15 0.42 4.1
500 0.17 0.40 4.7
630 0.19 0.38 5.3
800 0.21 0.37 5.7
1000 0.23 0.36 6.3

127/220(245) kV

Cross Section (mm²) Capacitance (μF/km) Inductance (mH/km) Charging Current @50Hz (A/km)
500 0.14 0.43 5.7
630 0.16 0.41 6.4
800 0.17 0.40 6.9
1000 0.19 0.38 7.4

160/275(300) kV

Cross Section (mm²) Capacitance (μF/km) Inductance (mH/km) Charging Current @50Hz (A/km)
500 0.14 0.44 6.8
630 0.16 0.42 7.7
800 0.17 0.40 8.3
1000 0.18 0.39 9.0

Dimensions and Weight

26/45(52) kV

Cross Section (mm²) Conductor Diameter (mm) Insulation Thickness (mm) Diameter Over Insulation (mm) Lead Sheath Thickness (mm) Overall Diameter (mm) Weight (kg/m)
95 11.2 8.0 29.6 1.3 109.0 20.8
120 12.6 8.0 31.0 1.3 112.0 22.3
150 14.2 8.0 32.6 1.4 116.0 24.4
185 15.8 8.0 34.2 1.4 119.0 26.2
240 18.1 8.0 36.5 1.5 124.0 29.5
300 20.4 8.0 38.8 1.6 130.0 32.9
400 23.2 8.0 41.6 1.7 136.0 37.9
500 26.2 8.0 45.0 1.8 144.0 43.2
630 29.8 8.0 48.6 1.9 152.0 49.7
800 33.7 8.0 52.5 2.1 162.0 58.6
1000 37.9 8.0 57.3 2.2 173.0 68.1

38/66(72.5) kV

Cross Section (mm²) Conductor Diameter (mm) Insulation Thickness (mm) Diameter Over Insulation (mm) Lead Sheath Thickness (mm) Overall Diameter (mm) Weight (kg/m)
95 11.2 9.0 31.6 1.3 113.0 21.6
120 12.6 9.0 33.0 1.4 116.0 23.8
150 14.2 9.0 34.6 1.4 120.0 25.7
185 15.8 9.0 36.2 1.4 124.0 28.0
240 18.1 9.0 38.5 1.6 129.0 31.3
300 20.4 9.0 40.8 1.6 134.0 34.3
400 23.2 9.0 43.6 1.7 141.0 39.2
500 26.2 9.0 47.0 1.9 149.0 45.4
630 29.8 9.0 50.6 2.0 157.0 52.0
800 33.7 9.0 54.5 2.1 167.0 60.1
1000 37.9 9.0 59.3 2.3 178.0 70.7

64/110(123) kV

Cross Section (mm²) Conductor Diameter (mm) Insulation Thickness (mm) Diameter Over Insulation (mm) Lead Sheath Thickness (mm) Overall Diameter (mm) Weight (kg/m)
185 15.8 16.0 50.2 2.0 156.0 40.9
240 18.1 15.0 50.5 2.0 157.0 42.5
300 20.4 14.0 50.8 2.0 157.0 44.1
400 23.2 13.0 51.6 2.0 159.0 47.2
500 26.2 13.0 55.0 2.1 167.0 53.0
630 29.8 13.0 58.6 2.3 176.0 60.7
800 33.7 13.0 62.5 2.4 185.0 69.5
1000 37.9 13.0 67.3 2.6 197.0 80.5

76/132(145) kV

Cross Section (mm²) Conductor Diameter (mm) Insulation Thickness (mm) Diameter Over Insulation (mm) Lead Sheath Thickness (mm) Overall Diameter (mm) Weight (kg/m)
185 15.8 18.0 54.2 2.1 165.0 44.9
240 18.1 17.0 54.5 2.1 166.0 46.3
300 20.4 16.0 54.8 2.1 167.0 48.0
400 23.2 15.0 55.6 2.1 168.0 51.1
500 26.2 15.0 59.0 2.3 176.0 58.0
630 29.8 15.0 62.6 2.4 185.0 65.2
800 33.7 15.0 66.5 2.5 194.0 74.0
1000 37.9 15.0 71.3 2.7 206.0 85.4

87/150(170) kV

Cross Section (mm²) Conductor Diameter (mm) Insulation Thickness (mm) Diameter Over Insulation (mm) Lead Sheath Thickness (mm) Overall Diameter (mm) Weight (kg/m)
240 18.1 21.0 62.5 2.4 184.0 55.5
300 20.4 20.0 62.8 2.4 185.0 57.3
400 23.2 19.0 63.6 2.4 187.0 60.5
500 26.2 18.0 65.0 2.5 190.0 65.1
630 29.8 17.0 66.6 2.5 194.0 69.7
800 33.7 17.0 70.5 2.7 204.0 79.8
1000 37.9 17.0 75.3 2.8 215.0 90.5

127/220(245) kV

Cross Section (mm²) Conductor Diameter (mm) Insulation Thickness (mm) Diameter Over Insulation (mm) Lead Sheath Thickness (mm) Overall Diameter (mm) Weight (kg/m)
500 26.2 24.0 77.6 2.9 219.0 81.3
630 29.8 23.0 79.2 3.0 224.0 86.7
800 33.7 23.0 83.1 3.1 234.0 95.3
1000 37.9 23.0 87.3 3.1 241.0 104.0

160/275(300) kV

Cross Section (mm²) Conductor Diameter (mm) Insulation Thickness (mm) Diameter Over Insulation (mm) Lead Sheath Thickness (mm) Overall Diameter (mm) Weight (kg/m)
500 26.2 26.0 81.6 2.9 229.0 84.7
630 29.8 24.0 81.2 3.0 228.0 88.9
800 33.7 24.0 85.1 3.1 237.0 97.6
1000 37.9 24.0 89.3 3.1 247.0 106.3
