0.6/1kV JIS C 3410 SPYC SPYCB SPYCY SPYCBY Shipboard Cables | Single-Core Armored Power Cables

HEPR/EPR Insulation Marine Shipboard Power Cables JIS C14
Description

0.6/1kV JIS C 3410 Single-Core Shipboard Cables | SPYC SPYCB SPYCY SPYCBY Series

Product Overview

JIS C 3410 compliant 0.6/1kV single-core shipboard power cables designed for marine electrical power distribution systems. Featuring EPR insulation and available with galvanized steel or copper alloy wire armor protection for enhanced mechanical durability.

Technical Standards & Certifications

  • Primary Standard: JIS C 3410-1999

  • Fire Safety: IEC 60332-1

  • Flame Retardant: IEC 60332-3 Cat.A (for FA-type)

  • Rated Voltage: 0.6/1kV

Cable Construction & Materials

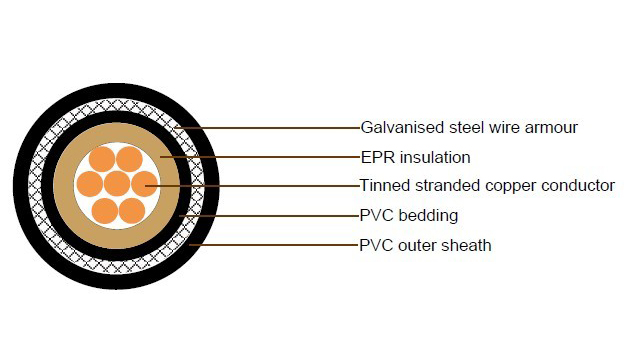

0.6/1kV JIS C 3410 SPYC SPYCB SPYCY SPYCBY Shipboard Cables | Single-Core Armored Power Cables

(FA-) SPYC, SPYCB Construction

Component Code Specification
Conductor S Tinned annealed stranded copper, class 2 per IEC 60228
Insulation P 85°C EPR as per JIS C 3410
Bedding Y PVC as per JIS C 3410
Armor C(CB) Galvanized steel wire braid (-C TYPE) or copper alloy wire braid (-CB TYPE)
Sheath Y PVC as per JIS C 3410

Color Coding

  • Outer Sheath Color: Black

Technical Specifications

(FA-) SPYC, SPYCB Specifications

Conductor Size mm² Conductor Construction Insulation Thickness mm Bedding Thickness mm Armor Wire Dia mm Nom. Overall Dia mm Tolerance mm Cable Weight kg/km
1.5 7/0.53 1.59 1.0 0.3 7.2 0.4 100
2.5 7/0.67 2.01 1.0 0.3 7.8 0.4 120
4 7/0.85 2.55 1.0 0.3 8.2 0.4 140
6 7/1.04 3.12 1.0 0.3 8.7 0.4 170
10 7/1.35 4.05 1.1 0.3 9.9 0.4 225
16 7/1.70 5.1 1.1 0.3 10.9 0.4 300
25 7/2.14 6.42 1.2 0.3 12.8 0.5 425
35 7/2.52 7.56 1.2 0.3 14.0 0.6 535
50 19/1.78 8.9 1.3 0.3 15.9 0.6 695
70 19/2.14 10.7 1.4 0.3 18.5 0.7 960
95 19/2.52 12.6 1.5 0.3 20.6 0.8 1250
120 37/2.03 14.2 1.5 0.3 22.2 0.9 1510
150 37/2.25 15.8 1.6 0.3 24.4 1.0 1830
185 37/2.52 17.6 1.7 0.3 26.8 1.1 2250
240 61/2.25 20.3 1.8 0.3 30.1 1.2 2910
300 61/2.52 22.7 1.9 0.4 33.6 1.3 3680

(FA-) SPYCY, SPYCBY Specifications

Conductor Size mm² Conductor Construction Sheath Thickness mm Nom. Overall Dia mm Tolerance mm Cable Weight kg/km
1.5 7/0.53 0.8 9.0 0.4 135
2.5 7/0.67 0.8 9.4 0.4 150
4 7/0.85 0.8 10.0 0.4 175
6 7/1.04 0.8 10.5 0.4 205
10 7/1.35 0.8 11.7 0.5 270
16 7/1.70 0.9 12.9 0.5 350
25 7/2.14 0.9 14.8 0.6 485
35 7/2.52 1.0 16.2 0.6 605
50 19/1.78 1.0 18.1 0.7 775
70 19/2.14 1.1 20.9 0.8 1060
95 19/2.52 1.1 23.0 0.9 1360
120 37/2.03 1.2 24.8 1.0 1650
150 37/2.25 1.2 27.0 1.1 1980
185 37/2.52 1.3 29.6 1.2 2420
240 61/2.25 1.4 33.1 1.3 3110
300 61/2.52 1.4 36.6 1.5 3910

Features & Benefits

  • Single-Core Design: Optimized for individual phase power distribution

  • Dual Armor Options: Galvanized steel wire or copper alloy wire braid

  • High Temperature Rating: 85°C EPR insulation for reliable thermal performance

  • Flame Retardant: Compliant with IEC 60332-1 and IEC 60332-3 Cat.A standards

  • Marine Grade: Tinned copper conductors and corrosion-resistant materials

  • Enhanced Protection: Additional sheath covering available (SPYCY/SPYCBY versions)

  • Comprehensive Range: Conductor sizes from 1.5mm² to 300mm²

Armor Type Comparison

  • SPYC/SPYCY: Galvanized steel wire braid armor

  • SPYCB/SPYCBY: Copper alloy wire braid armor

  • SPYCY/SPYCBY: Include additional protective sheath over armor

Application Areas

  • Shipboard main power distribution systems

  • Marine equipment single-phase power supply

  • Naval vessel electrical power circuits

  • Offshore platform power distribution

  • Marine electrical switchboards and panel wiring

*Note: All specifications are in accordance with JIS C 3410-1999 standards. Cable parameters may vary within manufacturing tolerances. These single-core power cables are designed for marine electrical power distribution systems where individual phase conductors are required.*
